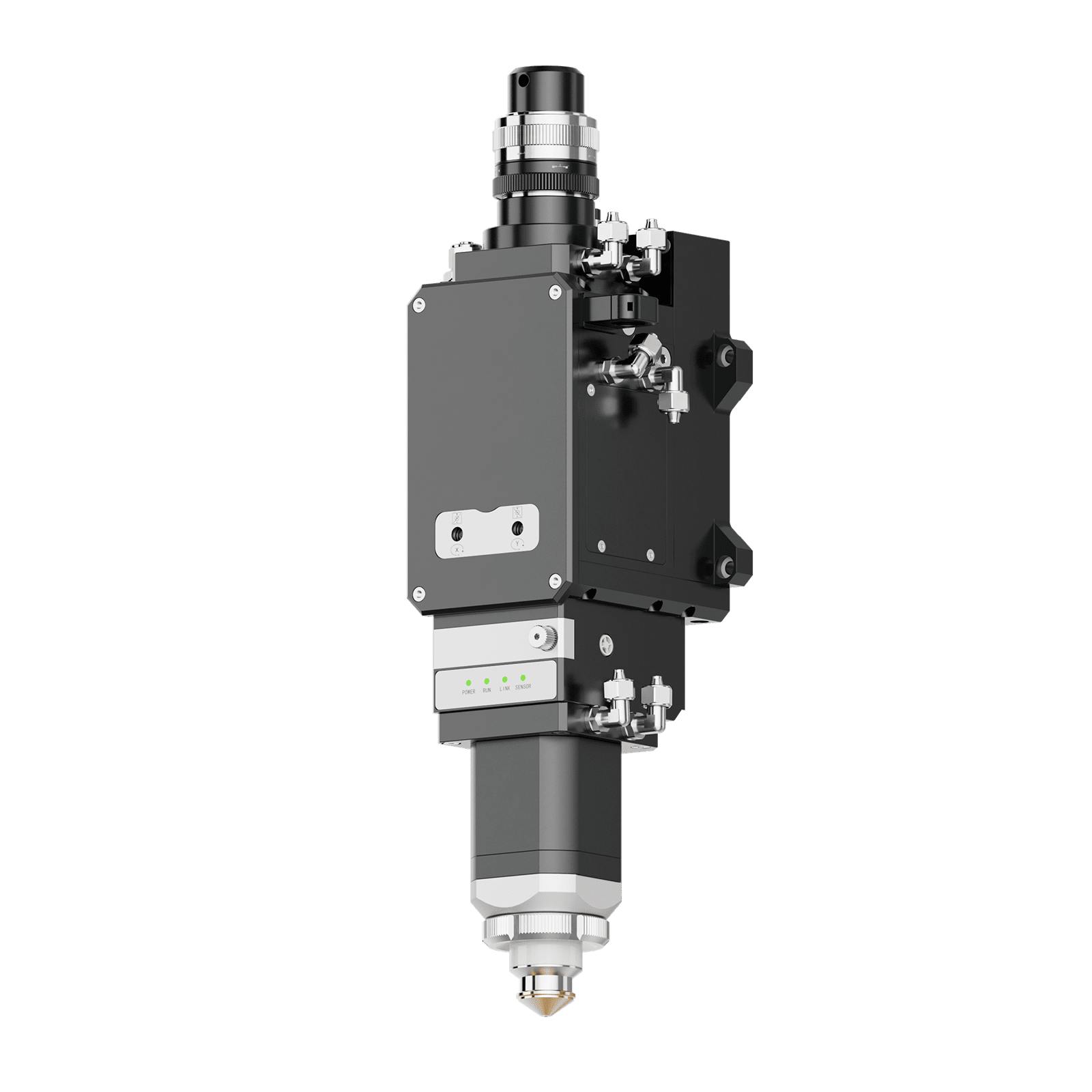

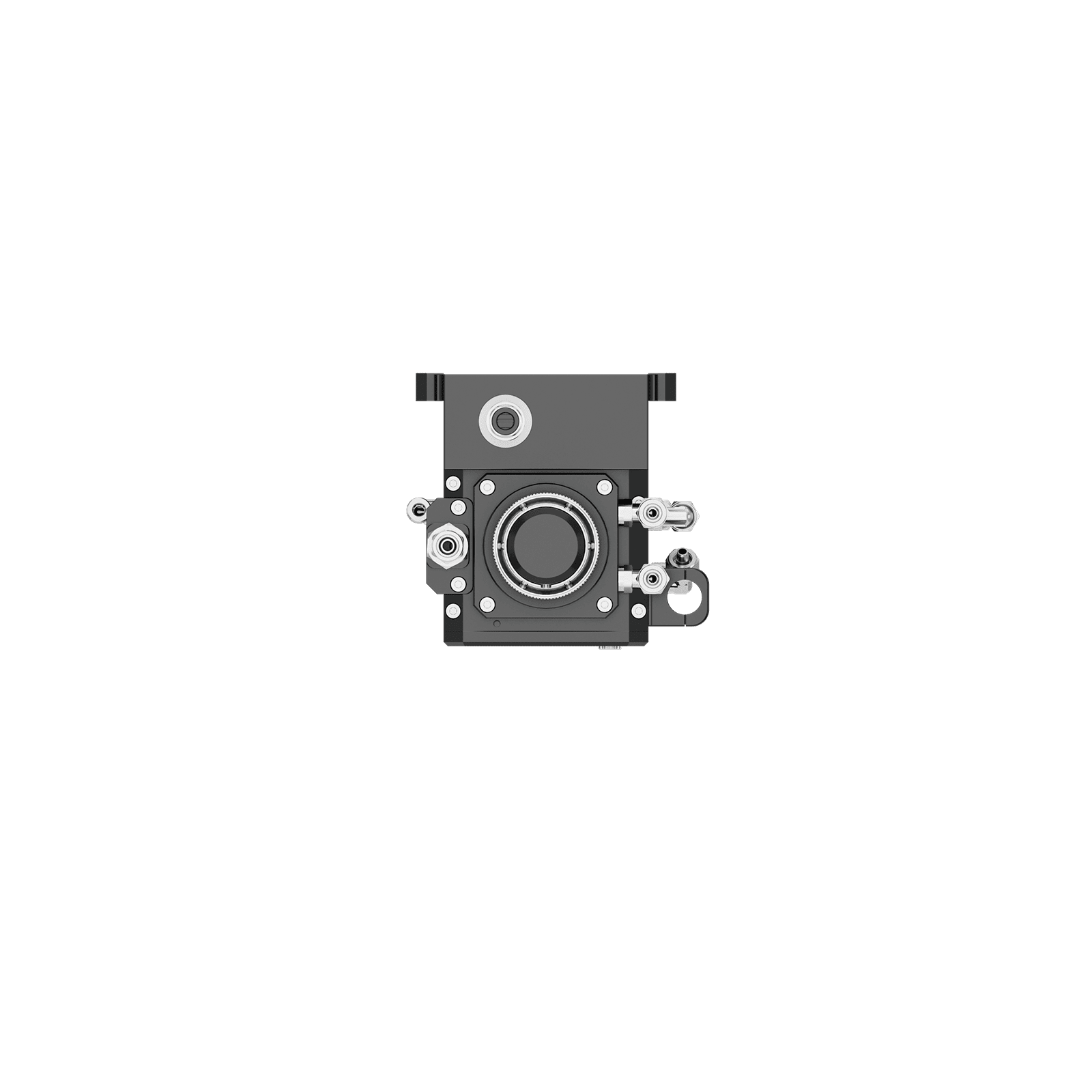

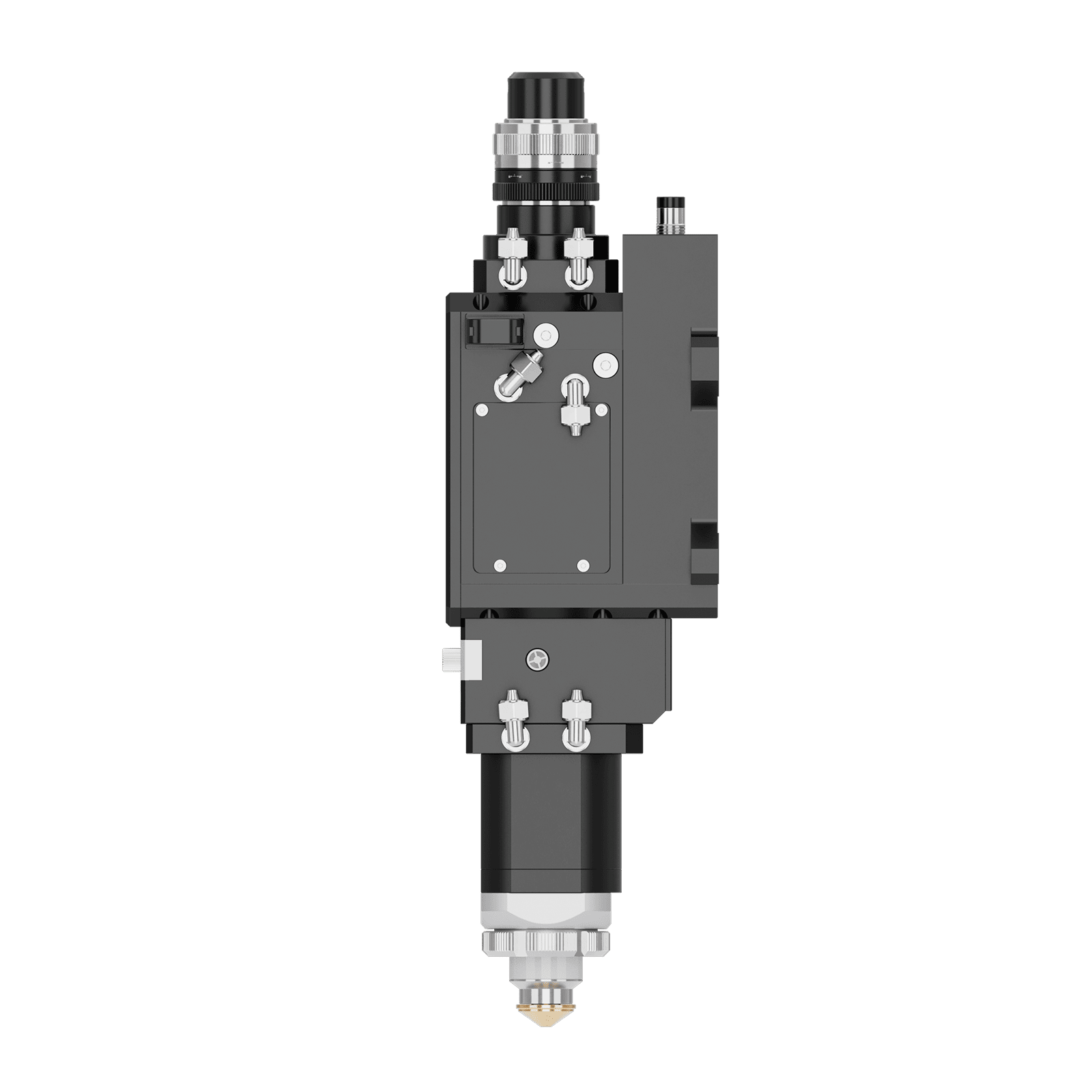

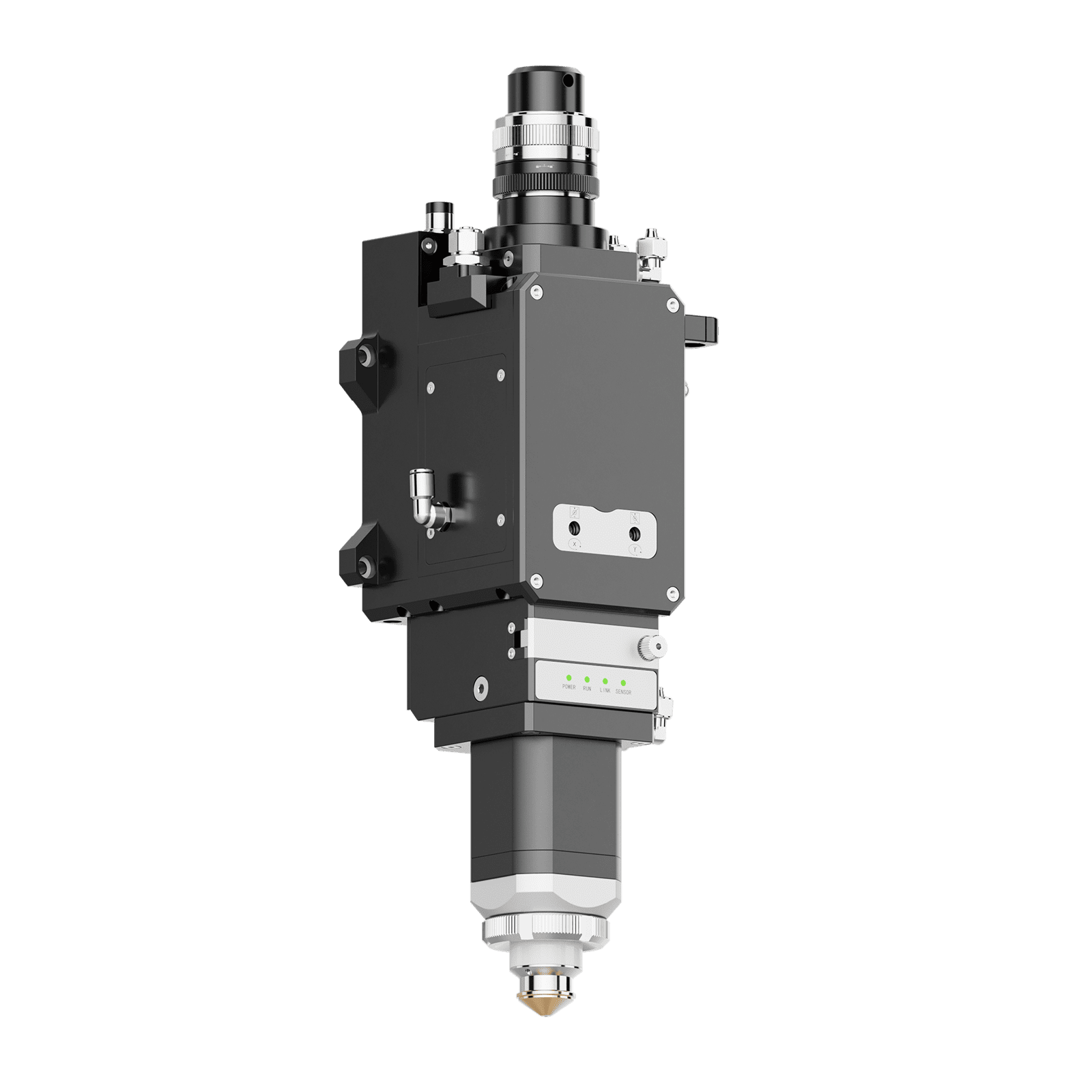

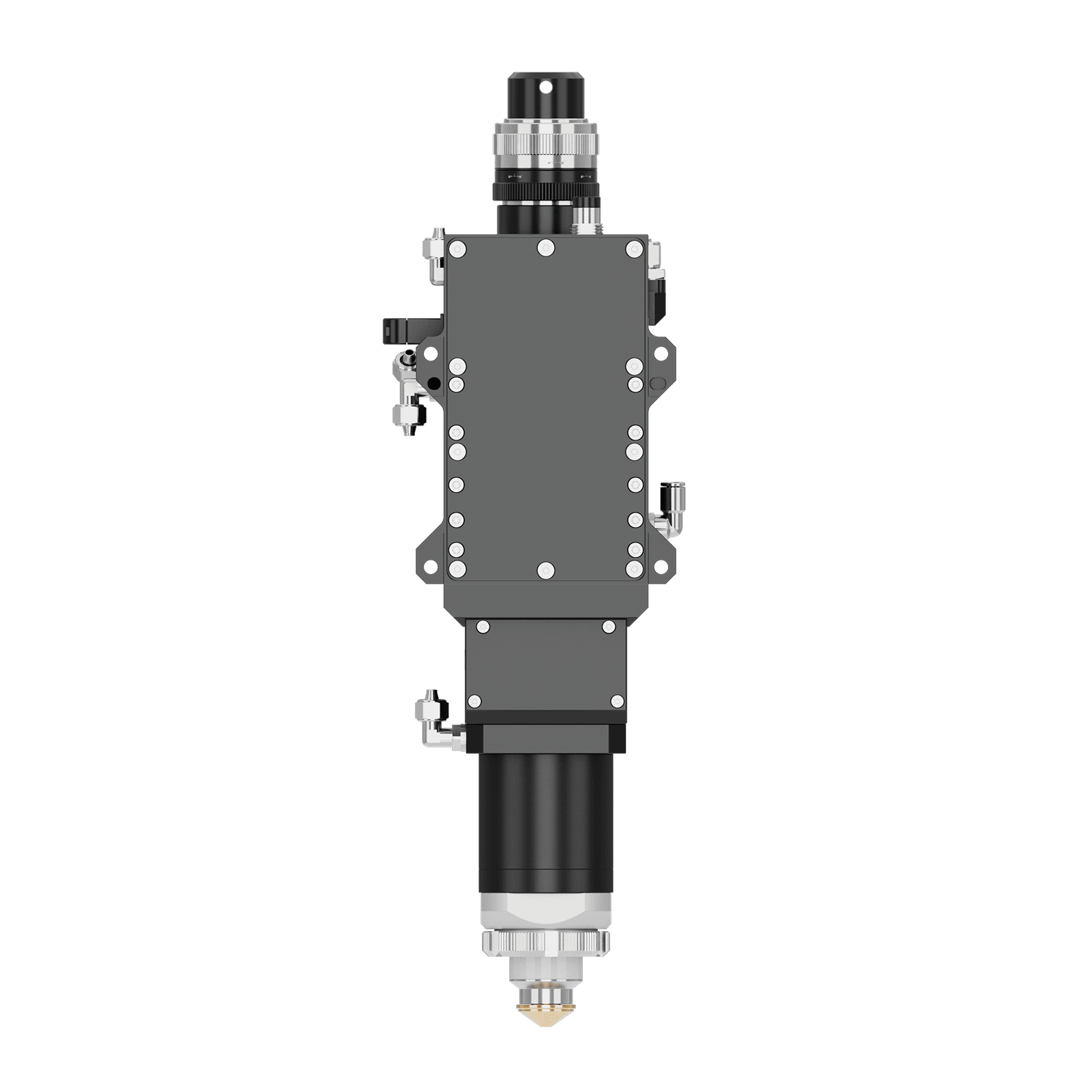

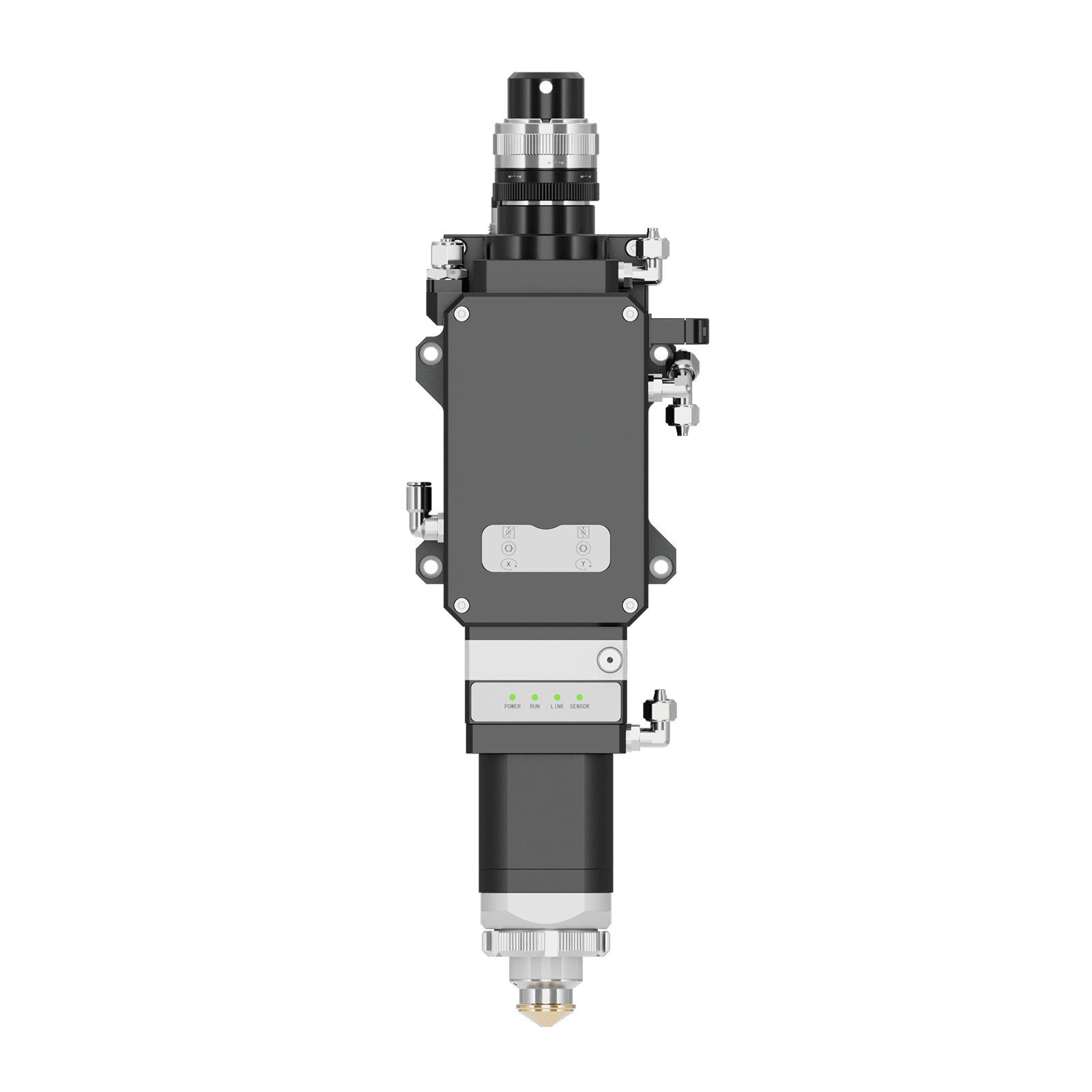

BLT 4 series
Laser Cutting Head
The BLT 4 Series comprises intelligent laser cutting heads engineered for medium-power laser cutting applications. Featuring a rugged and lightweight design, they integrate multiple sets of advanced sensors to provide real-time closed-loop monitoring, enabling rapid diagnostics and instantaneous fault detection alerts.
Key Features of BLT 4 Series Laser Cutting Heads

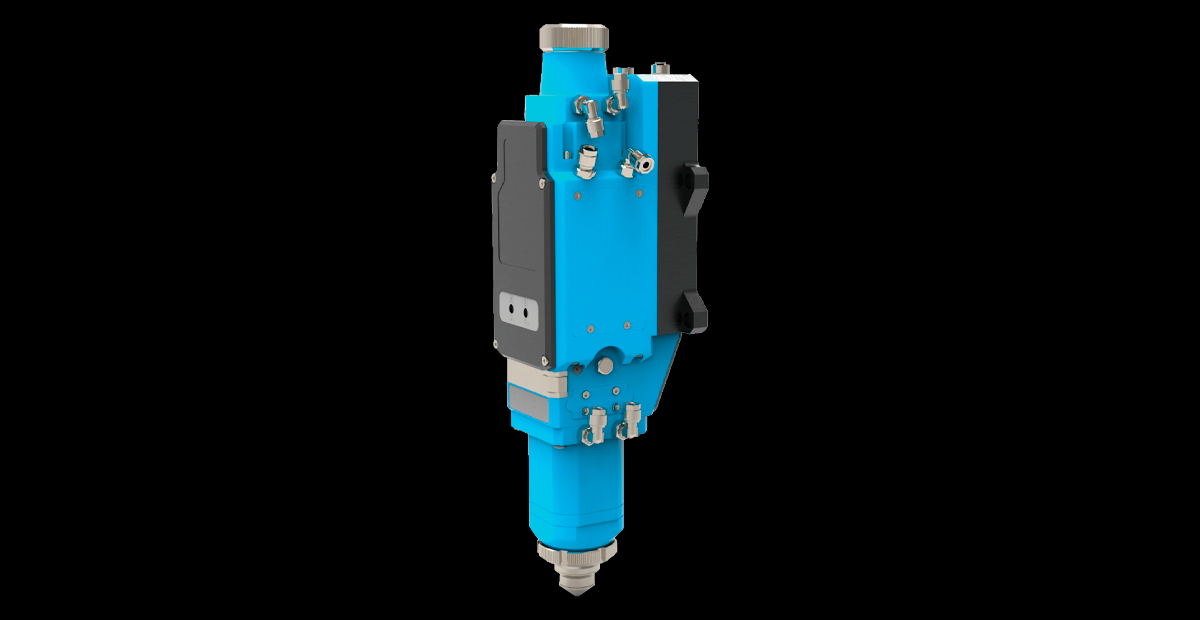

Optimized Water Cooling system. Covers 90% of the optical path, providing full-body cooling for the cutting head.

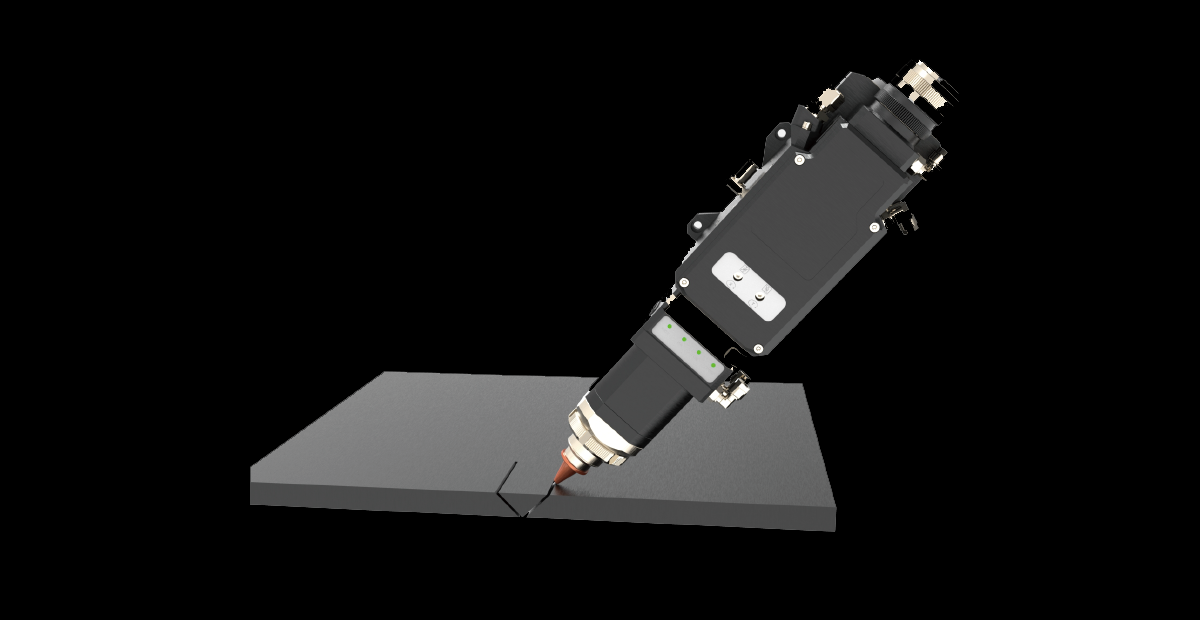

With AB swing axis can support cutting V, Y, X and other types of bevels, maximum ±45° bevel and one time forming, reducing beveling process, reducing cost and increasing efficiency.

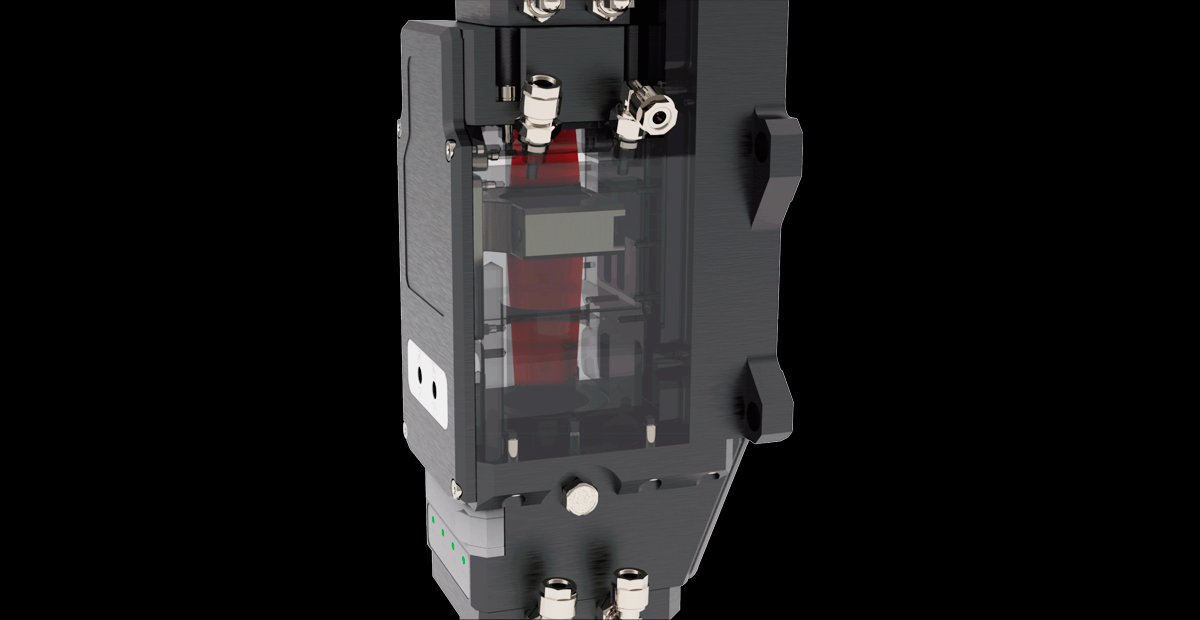

Rapid Focus-Collimation Response. Accelerated response in focus-collimation reduces idle time and ensures a smoother, more efficient cutting experience

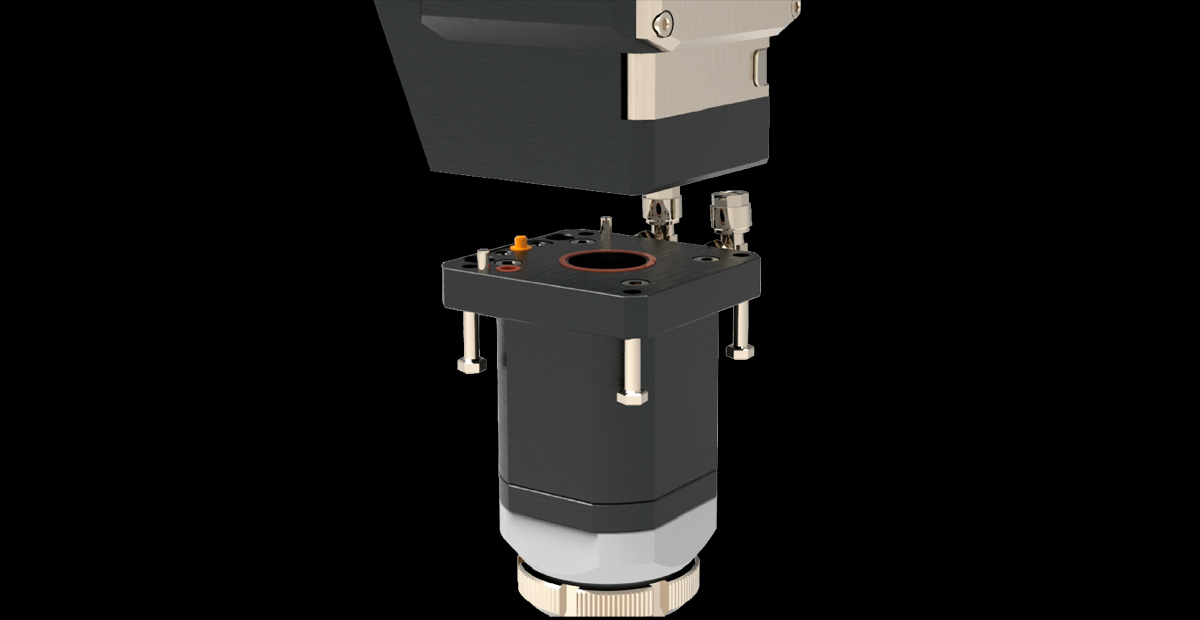

Minimizes user losses and enables rapid production recovery.

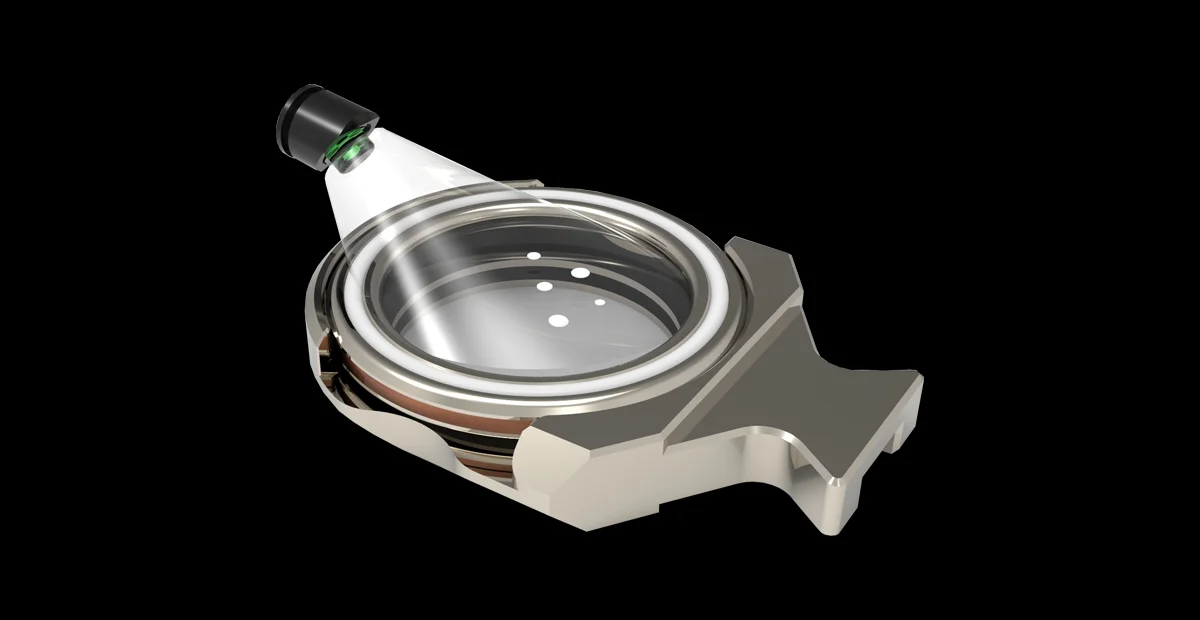

Monitor the contamination to avoid its impact on cutting quality.
Specifications
| Model | BLT 421S | BLT 442 | BLT 462 | BLT 482 | BLT 4102 | BLT 4122 |
| Power Range | ≤8 kW | ≤15 kW | ≤20 kW | ≤30 kW | ≤40 kW | ≤60 kW |
| Fiber Interface | QBH, EOC | Q+, QD, QBH, ADD | ||||
| Focal Distance | 150/200 mm | 200 mm | 200/300 mm | 300 mm | ||
| Laser Wavelength | 1030 ~ 1090 nm | |||||
| Weight | 5.1 kg | 6.1 kg | 6.1/7.0 kg | About 7 kg | ||
Spare Parts & Consumables
Image | Name | SKU | Description |
|---|---|---|---|
 | DP.M.Q0078AA | The 2nd-Lower Protective Window Cartridge for the Bochu BLT 4 Series Laser… | |
| DP.M.Q0209AA | The 2nd-Lower Protective Window Cartridge for the Bochu BLT 3 Series and… | |
| DP.M.Q0079AA | The 2nd-Lower Protective Window Cartridge for the Bochu BLT 4 Series (461-200… | |
| P.S.M0260 | The 2nd-Lower Protective Window Cartridge for the Bochu BLT 4 Series Laser… | |
 | DP.V.P0002AA | The 2nd Upper Protective Window for the Bochu BLT 4 Series and… | |
| DP.V.P0003AA | The 2nd Upper Protective Window for the Bochu BLT 4 Series Laser… | |
 | DP.M.Q0251AA | The 2nd Upper Protective Window Cartridge for the Bochu BLT 4 Series… | |
| P.S.M0250 | The 2nd Upper Protective Window Cartridge for the Bochu BLT 4 Series… | |
| DP.M.Q0045AA | The 2nd Upper Protective Window Cartridge for the Bochu BLT 4 Series… | |
| DP.M.Q0243AA | The 2nd Upper Protective Window Cartridge for the Bochu BLT 4 Series… | |
| DP.M.Q0244AA | The 2nd Upper Protective Window Cartridge for the Bochu BLT 4 Series… | |
 | DP.M.Q0115AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421-200) Laser… | |
| DP.M.Q0253AA | The Capacitance Sensor Module for the Bochu BLT 4 Series Laser Cutting… | |
| DP.M.Q0290AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421TS-200) Laser… | |
| DP.M.Q0291AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421TS-250) Laser… | |
| DP.M.Q0112AA | The Capacitance Sensor Module for the Bochu BLT 4 Series Laser Cutting… | |
| DP.M.Q0254AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421S-200) Laser… | |
| DP.M.Q0114AA | The Capacitance Sensor Module for the Bochu BLT 4 Series Laser Cutting… | |
| DP.M.Q0118AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421-150) Laser… | |
| DP.M.Q0204AA | The Capacitance Sensor Module for the Bochu BLT 4 Series (421T-250, 442T-250)… |
