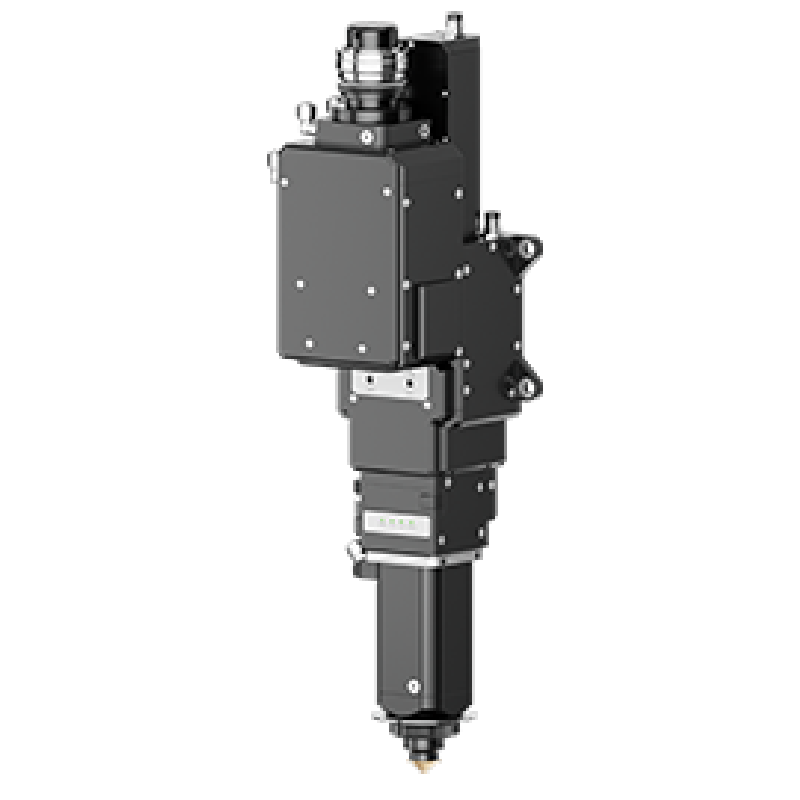

BLTA series
Laser Cutting Head
The BLTA series laser cutting heads are designed for ultra-high-power laser applications, supporting power ranges up to 120 kW with fiber interfaces like Q+, ADD, and QP24. Featuring a 300 mm focal distance and laser wavelengths between 1030-1090 nm, these heads incorporate advanced technologies such as smart piercing, auto recut, real-time cutting path monitoring, and intelligent focus adjustment to ensure consistent, high-quality cutting performance and enhanced operational efficiency. Additionally, they provide features like stray light monitoring and optimized laser off control for smoother cutting surfaces and improved process stability.
Key Features of BLTA Series Laser Cutting Heads

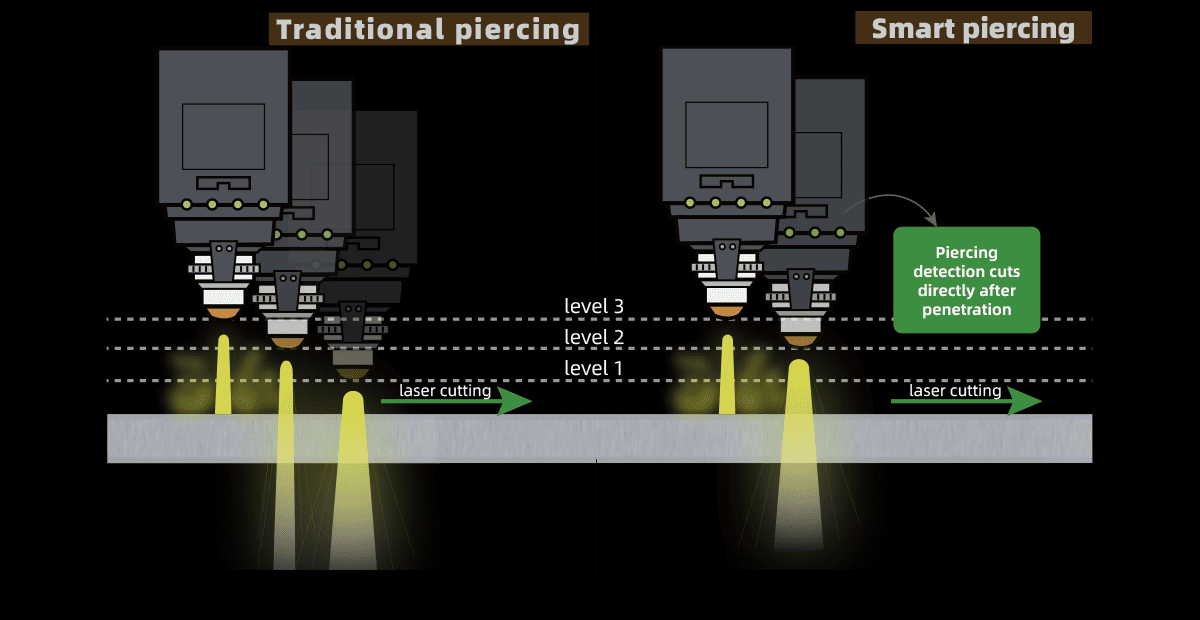

Monitor the piercing and cut immediately after piercing to improve the efficiency and reduce costs.

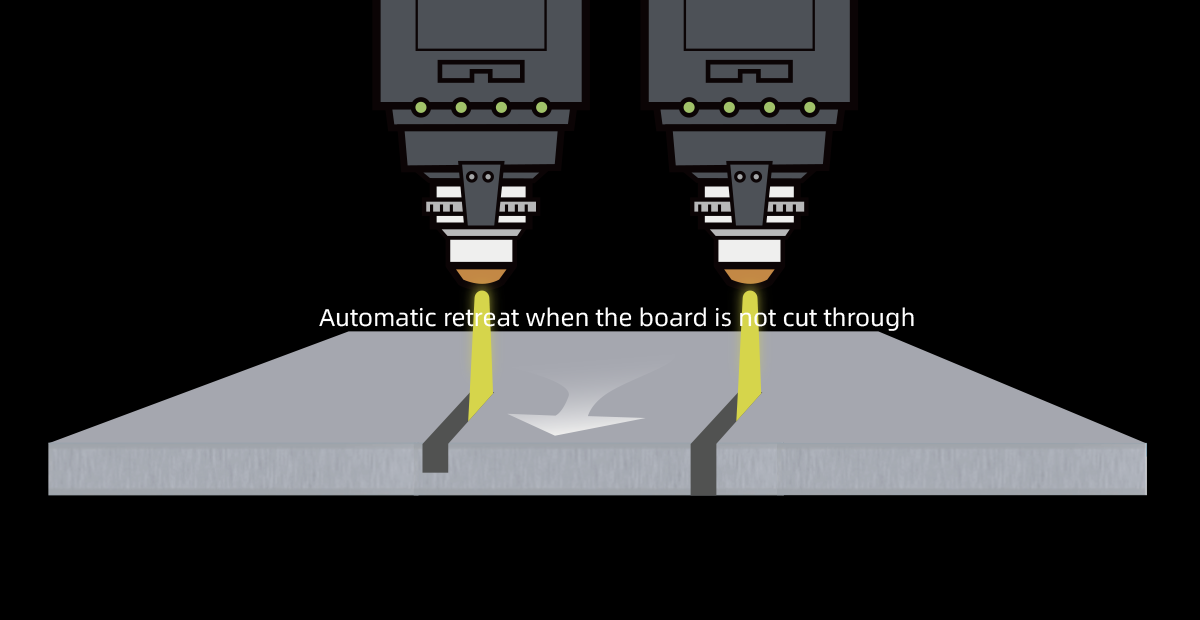

If a part is not cut through, the cutting head will return and cut it again.

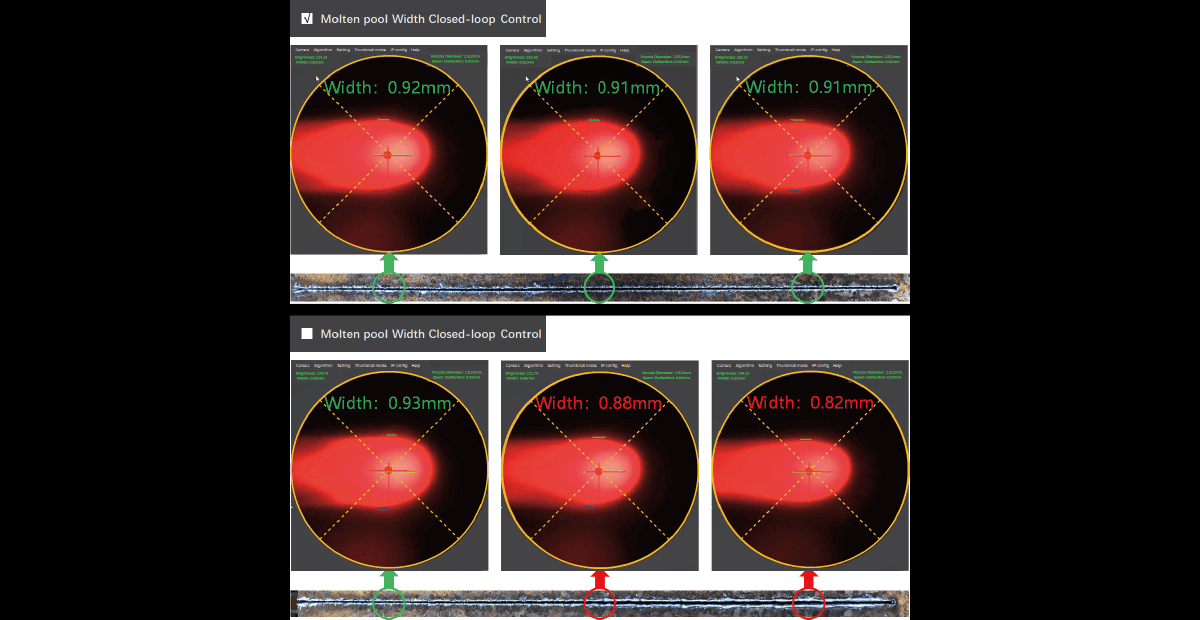

Solve the pain point of temperature drift by monitoring the seam width in real time during the cutting process Intelligent adjustment of focus to ensure consistent cutting results over a long period of time.

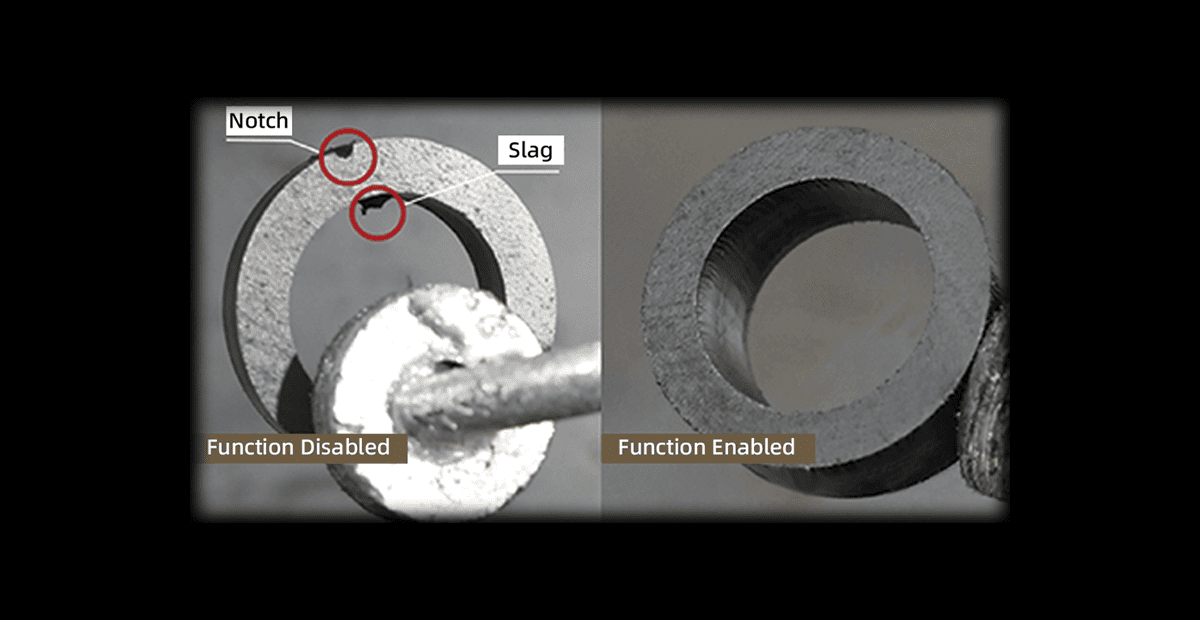

Section and surface finish of inner and outer contours of parts are smooth without slag.
Specifications
| Model | BLTA140M | BLTA160M | BLTA180M |
| Power Range | ≤80 kW | ≤100 kW | ≤120 kW |
| Fiber Interface | Q+, ADD | ADD, QP24 | |
| Focal Distance | 300 mm | ||
| Laser Wavelength | 1030 ~ 1090 nm | ||
| Weight | About 13 kg | ||
