BLT 4P series
Laser Cutting Head

Precision smart cutters designed for medium-power laser applications, featuring advanced auto-focusing, real-time monitoring, and collision protection to ensure stable and efficient cutting performance.

See specifications.

Key Features of BLT 4P Series Laser Cutting Heads

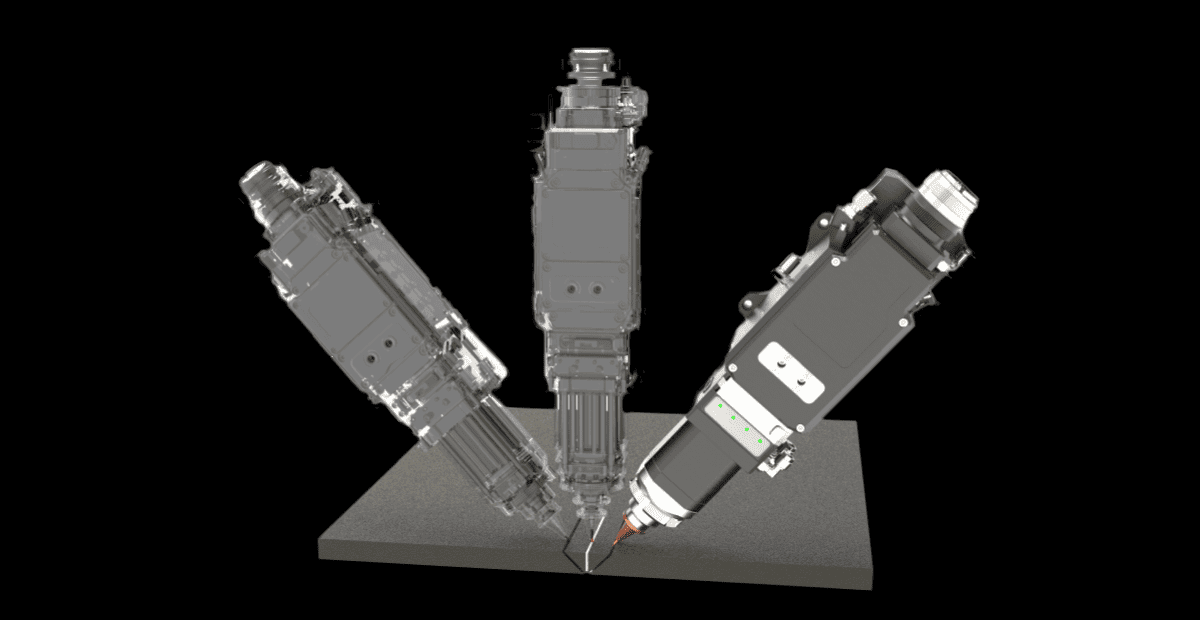

With AB swing axis can support cutting V, Y, X and other types of bevels, maximum ±45° bevel and one time forming, reducing beveling process, reducing cost and increasing efficiency.

features 4p bevel cutting 2

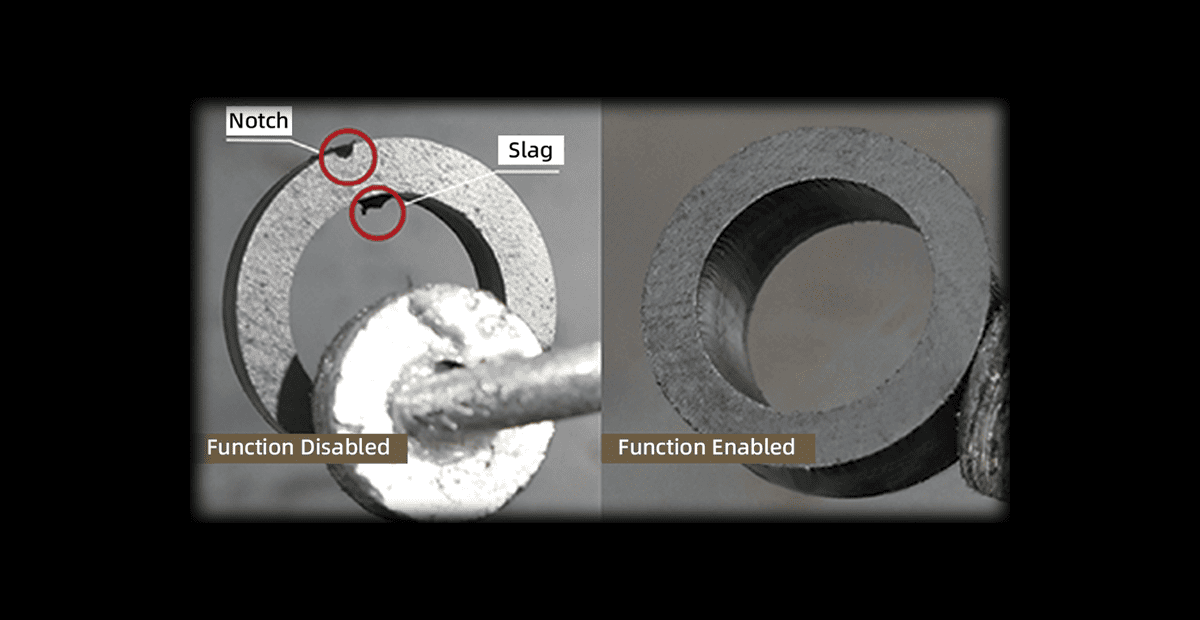

Section and surface finish of inner and outer contours of parts are smooth without slag.

features 4p smart laseroff

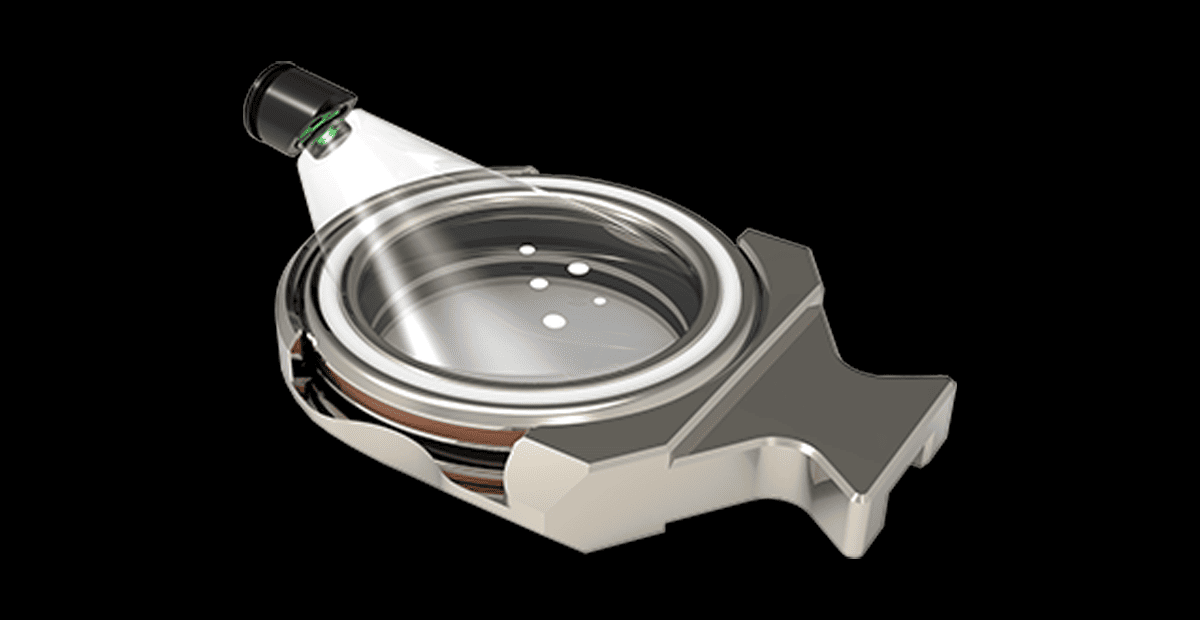

Monitor the contamination to avoid its impact on cutting quality.

features 4p protective window monitoring

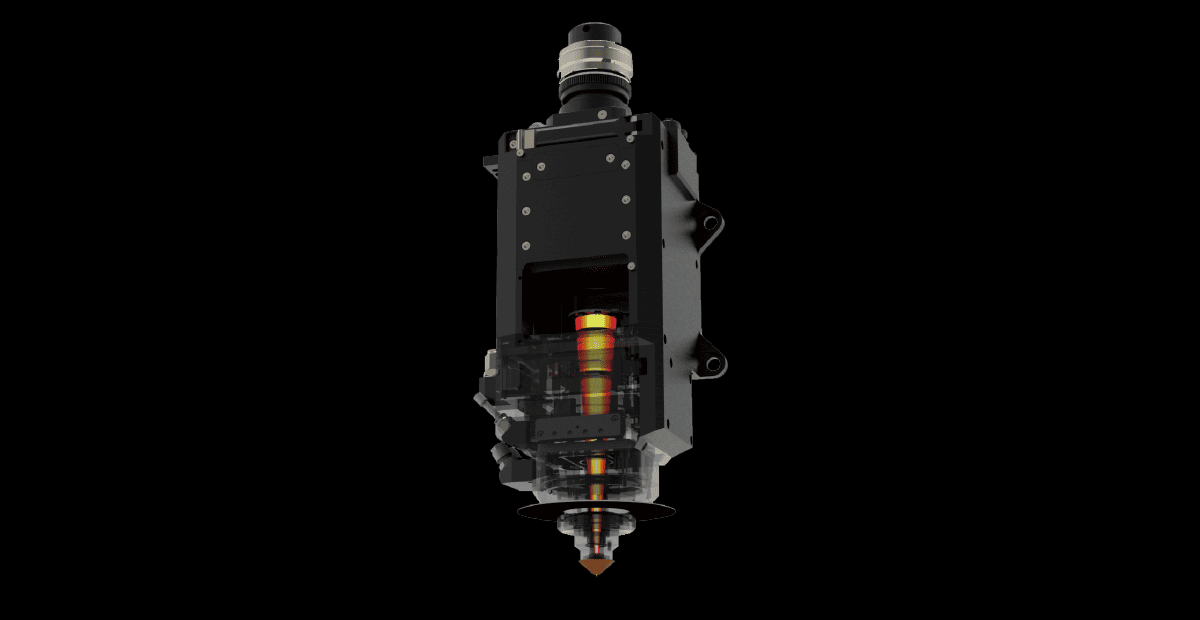

Contamination sensor and system algorithms are upgraded to monitor the stray light of the protective window in real-time.

features 4p protective window anti explosion

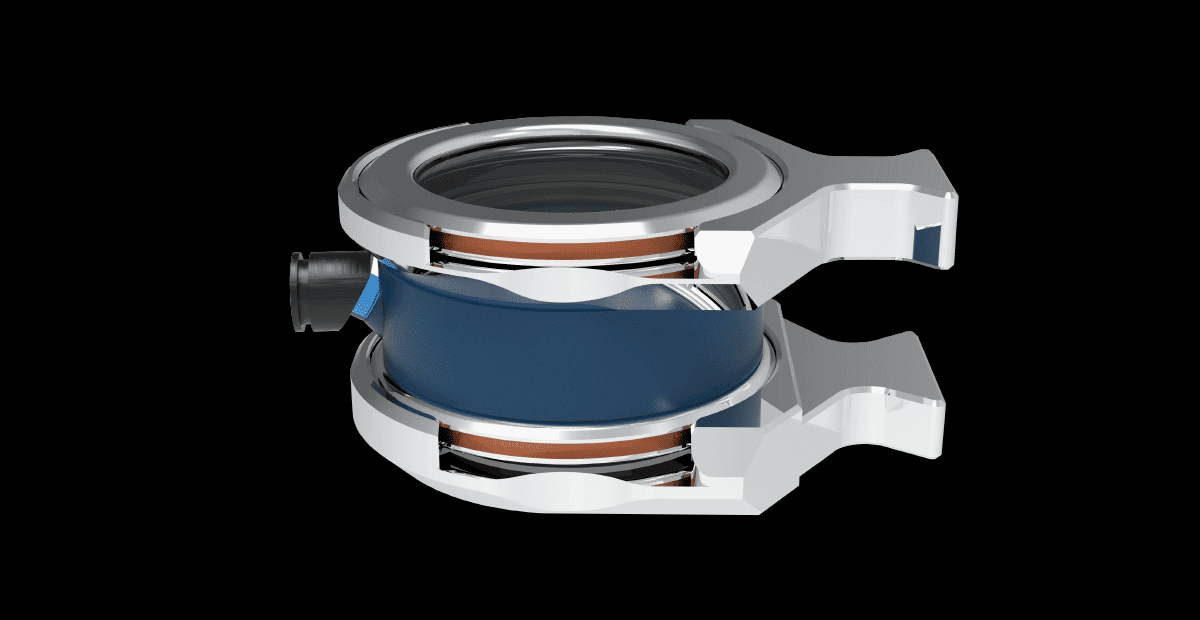

Monitor the sealing of the protective windows cartridge for stable production.

features 4p bottom protective cartridge sealing

Specifications

blt482p (q+,250) 2.1 1600

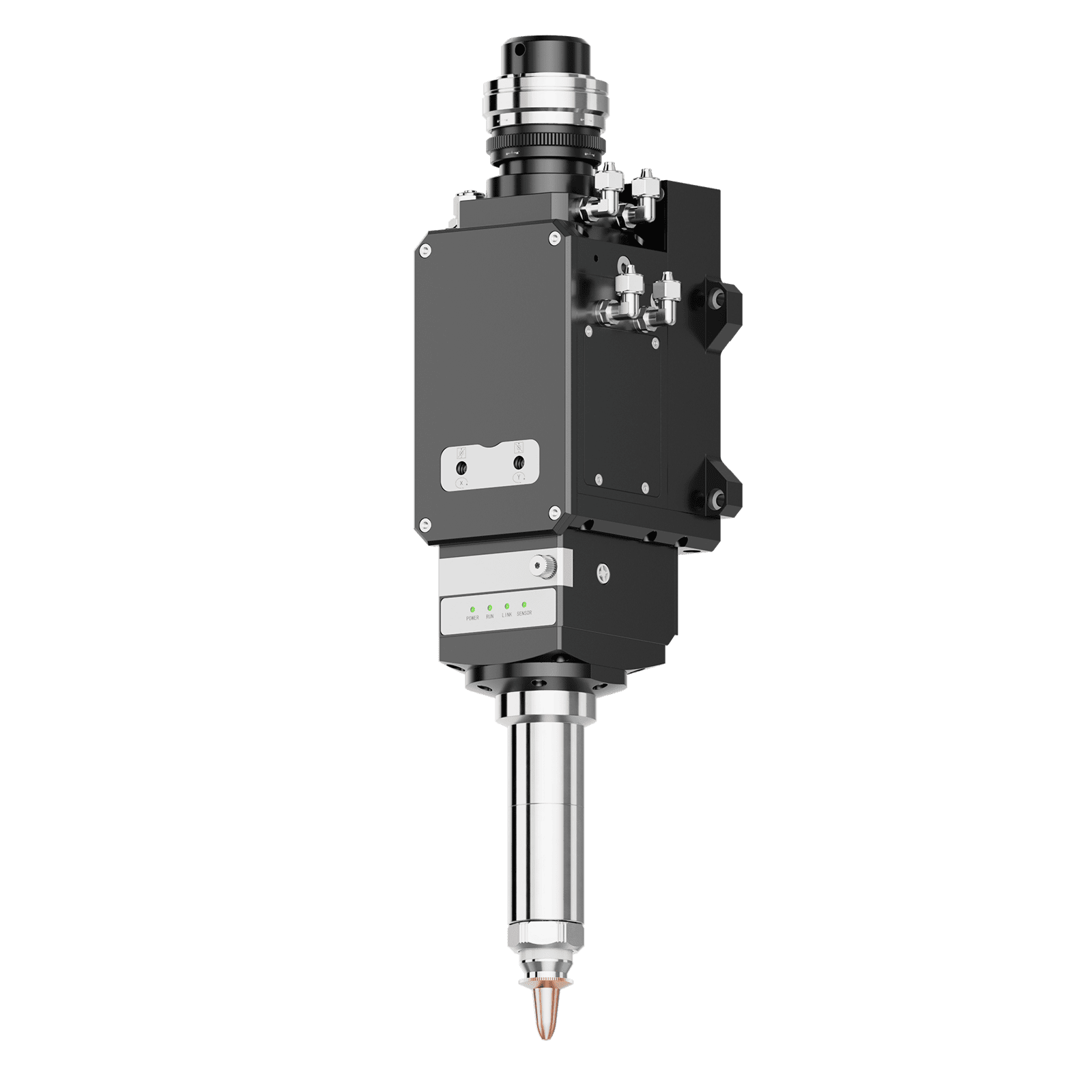

blt482p (q+,250) 2.2 1600

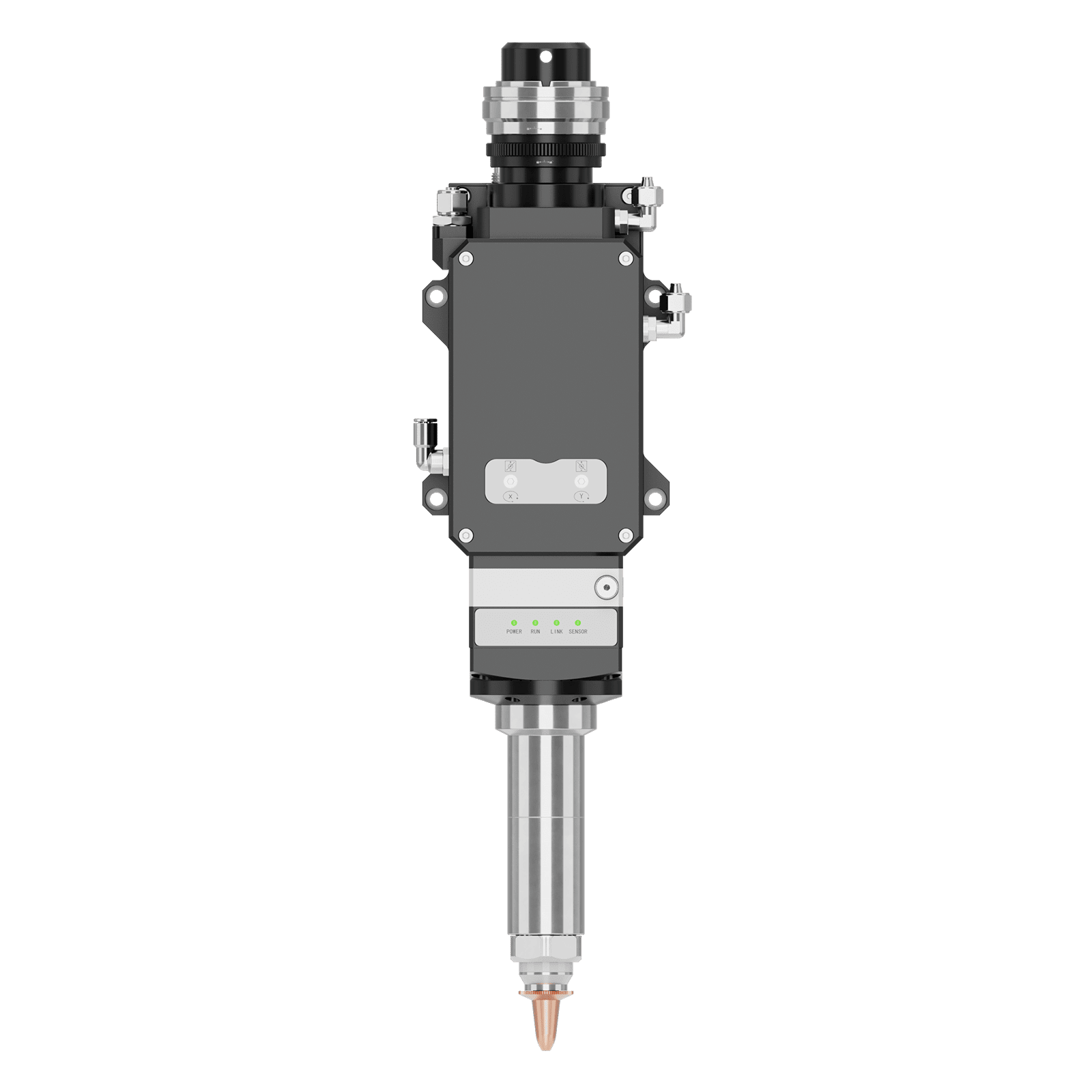

blt482p (q+,250) 3 1600

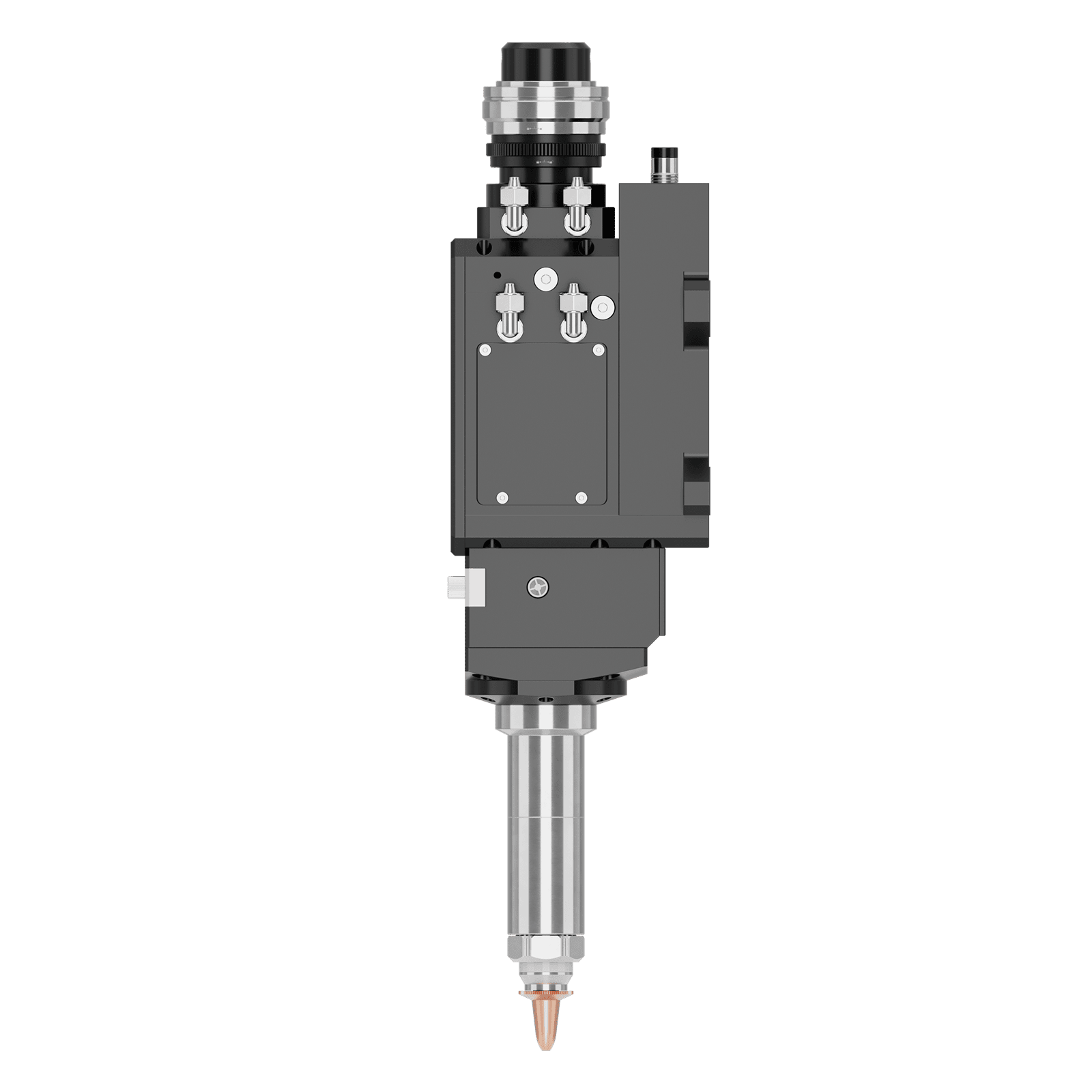

blt482p (q+,250) 1 1600

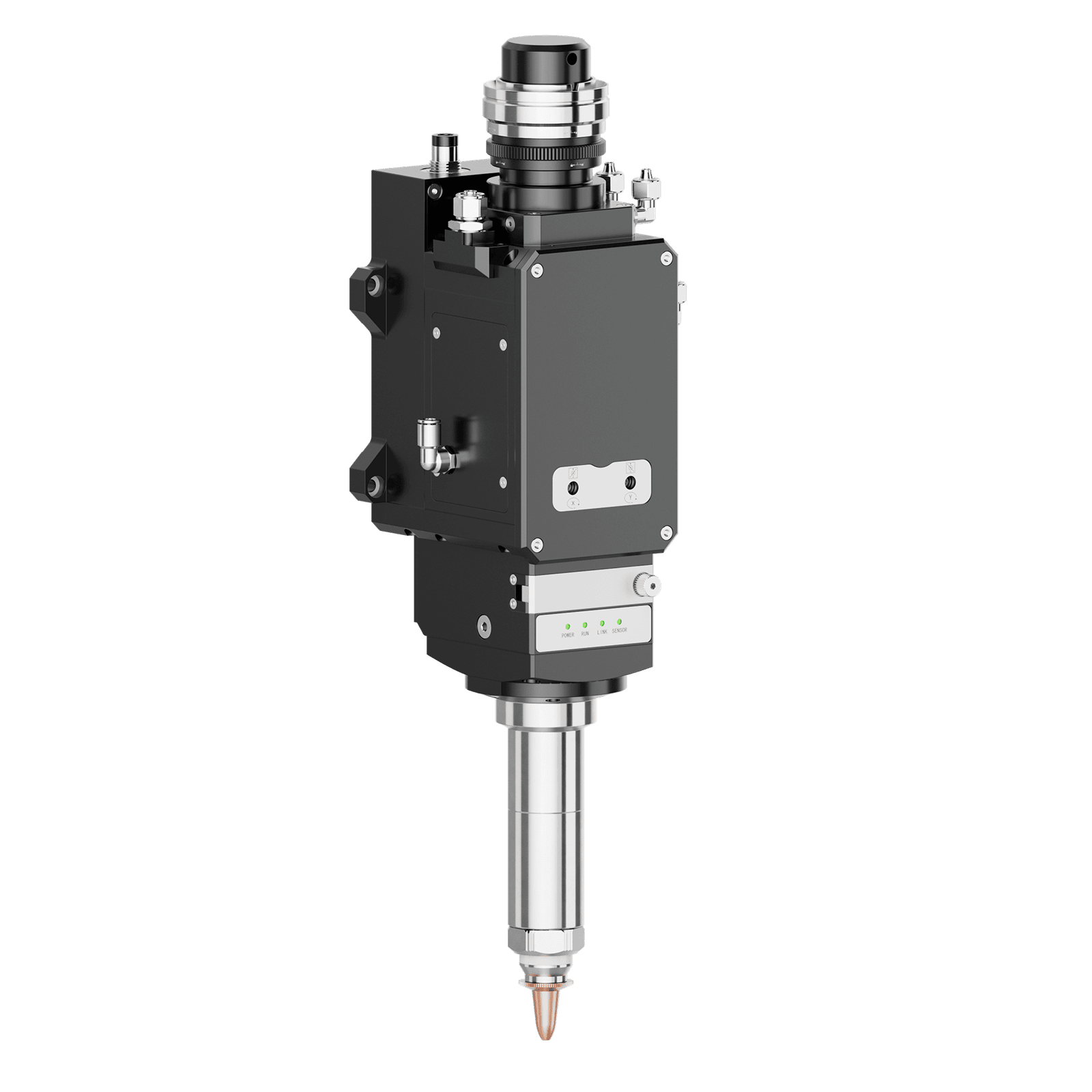

blt482p (q+,250) 1.1 1600
blt482p (q+,250) 1.2 1600

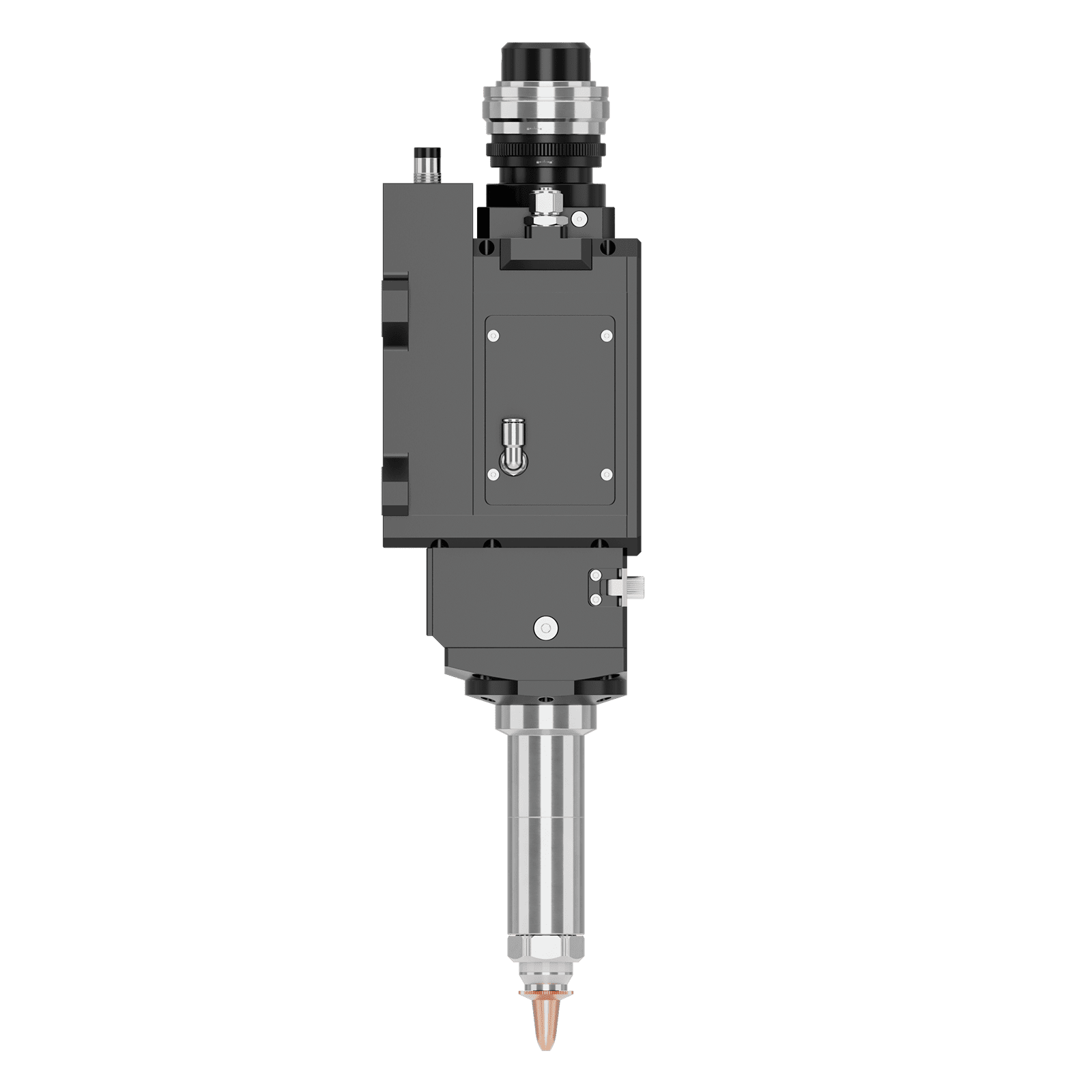

blt482p (q+,250) 2 1600
blt482p (q+,250) 2.2 150

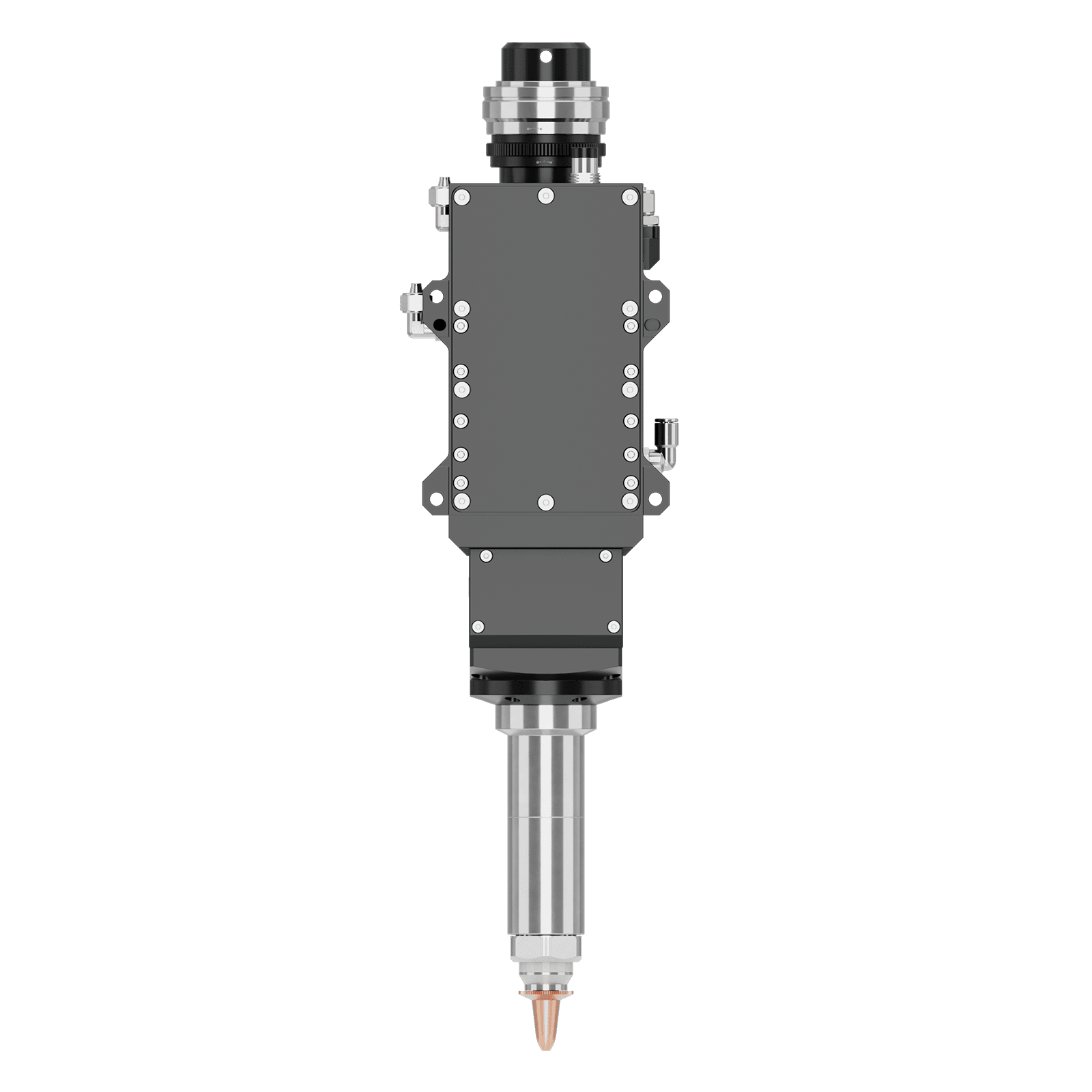

blt482p (q+,250) 4 1600

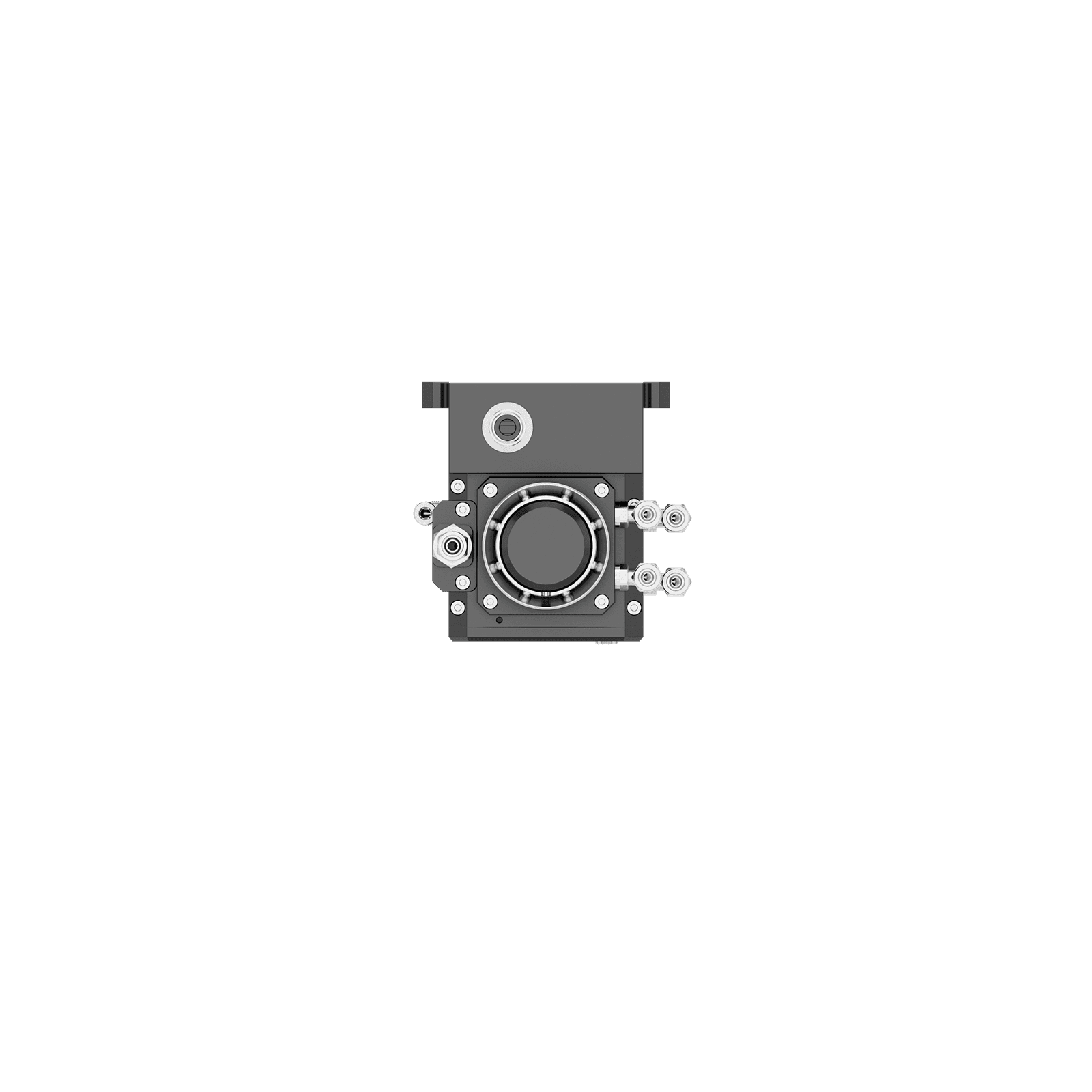

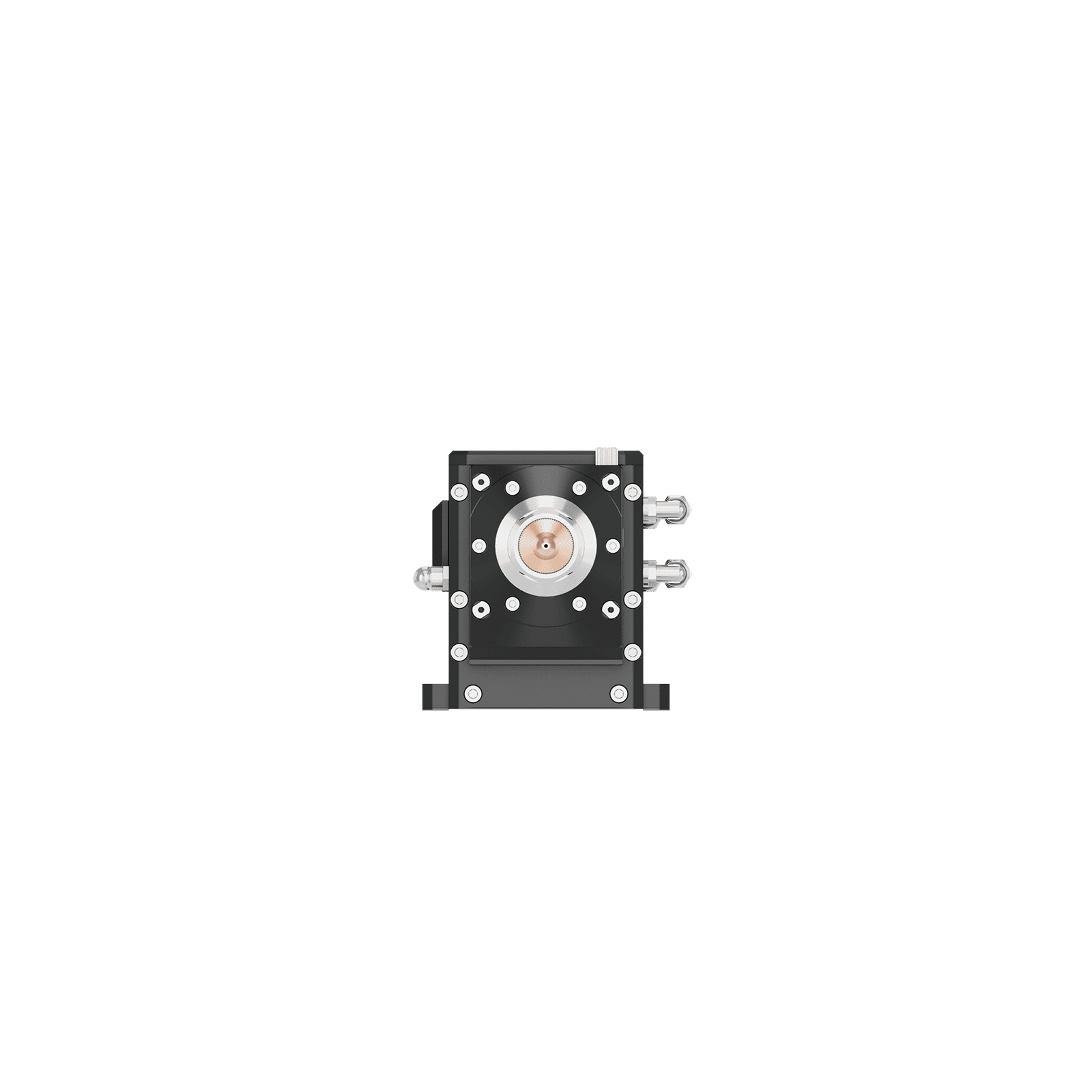

blt482p (q+,250) 5 1600
blt482p (q+,250) 6 1600
Model BLT 442P BLT 462P BLT 482P BLT 4102P
Power Range ≤15 kW ≤20 kW ≤30 kW ≤40 kW
Fiber Interface Q+, ADD, QBH, QD
Focal Distance 250/300 mm
Laser Wavelength 1030 ~ 1090 nm
