BLT 3 series
Laser Cutting Head

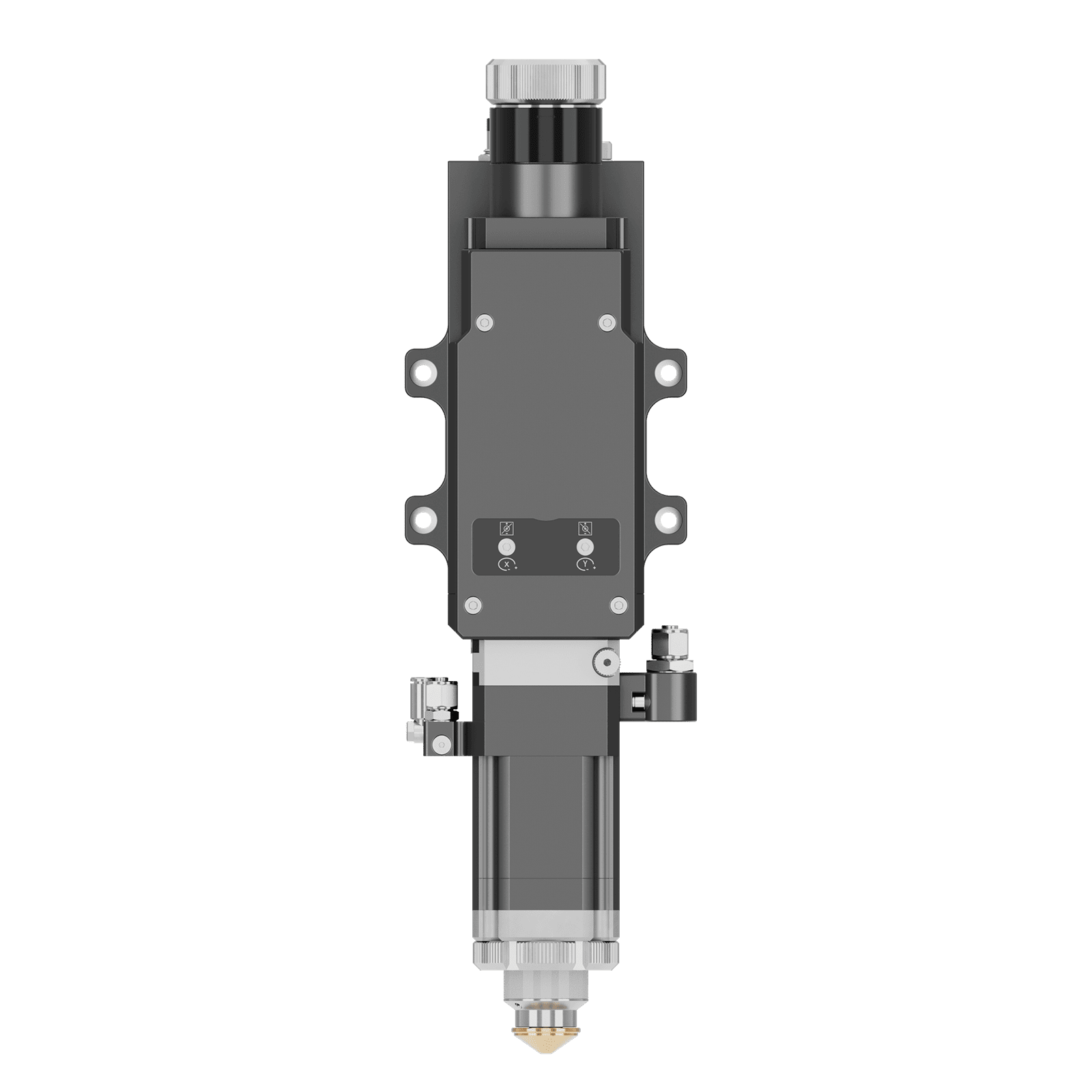

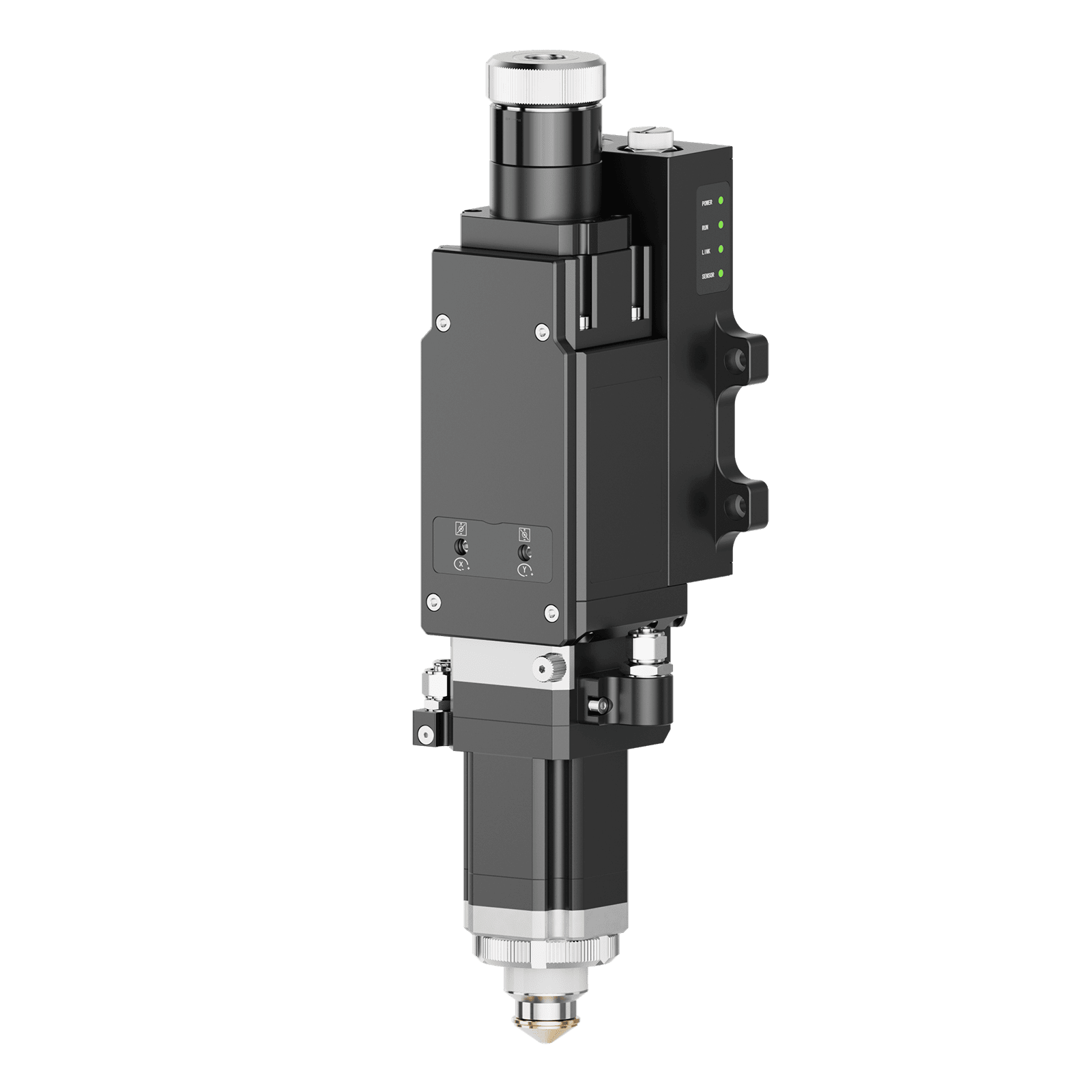

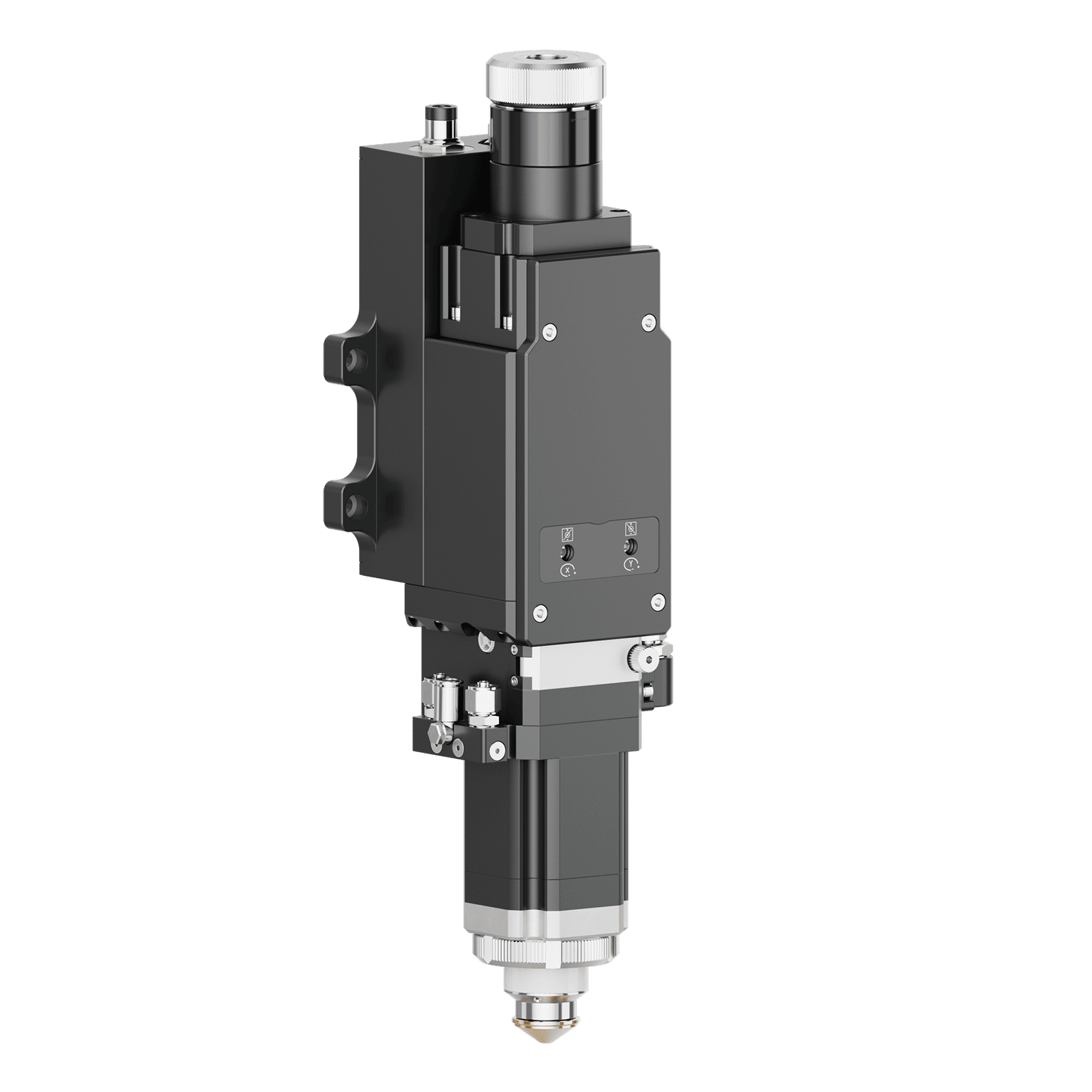

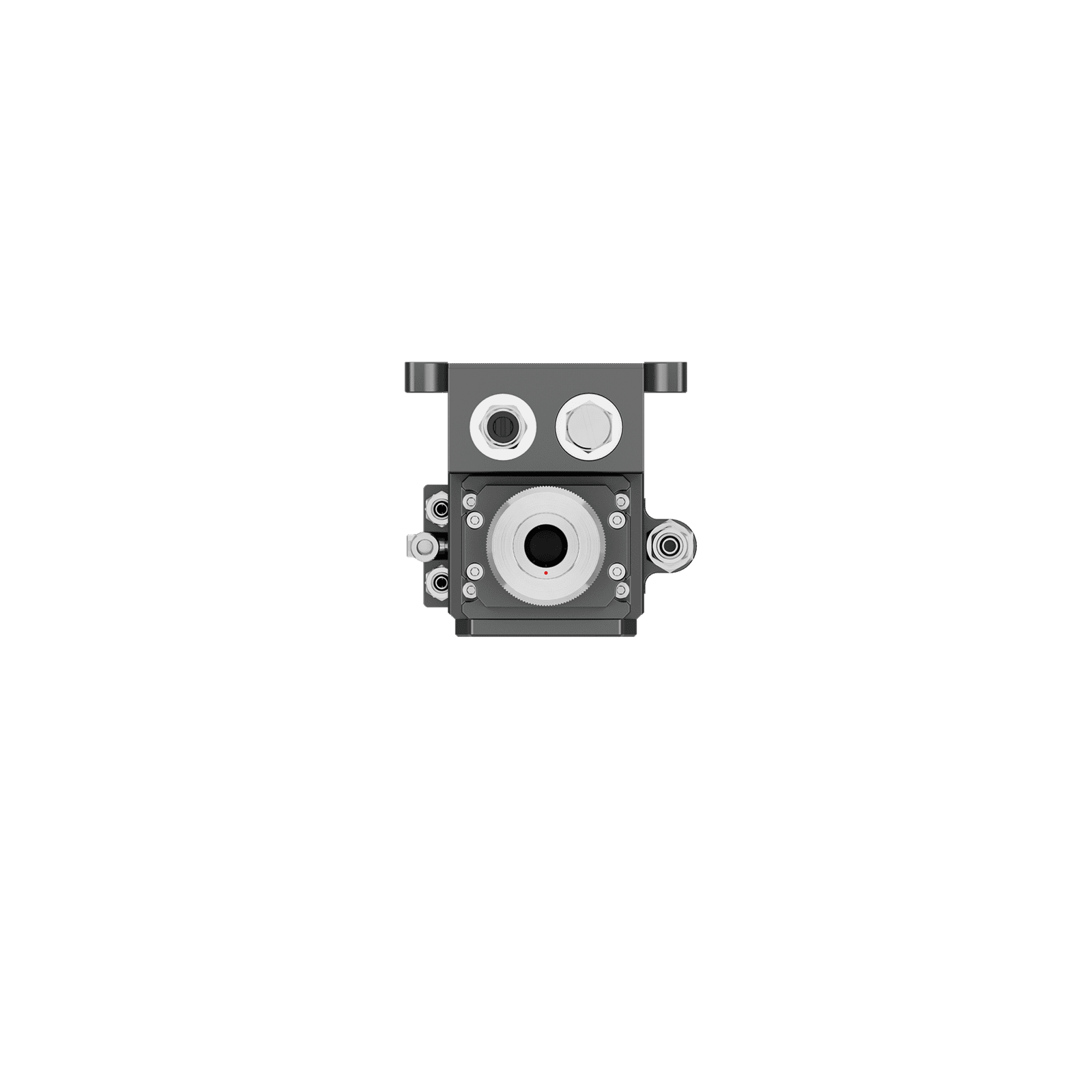

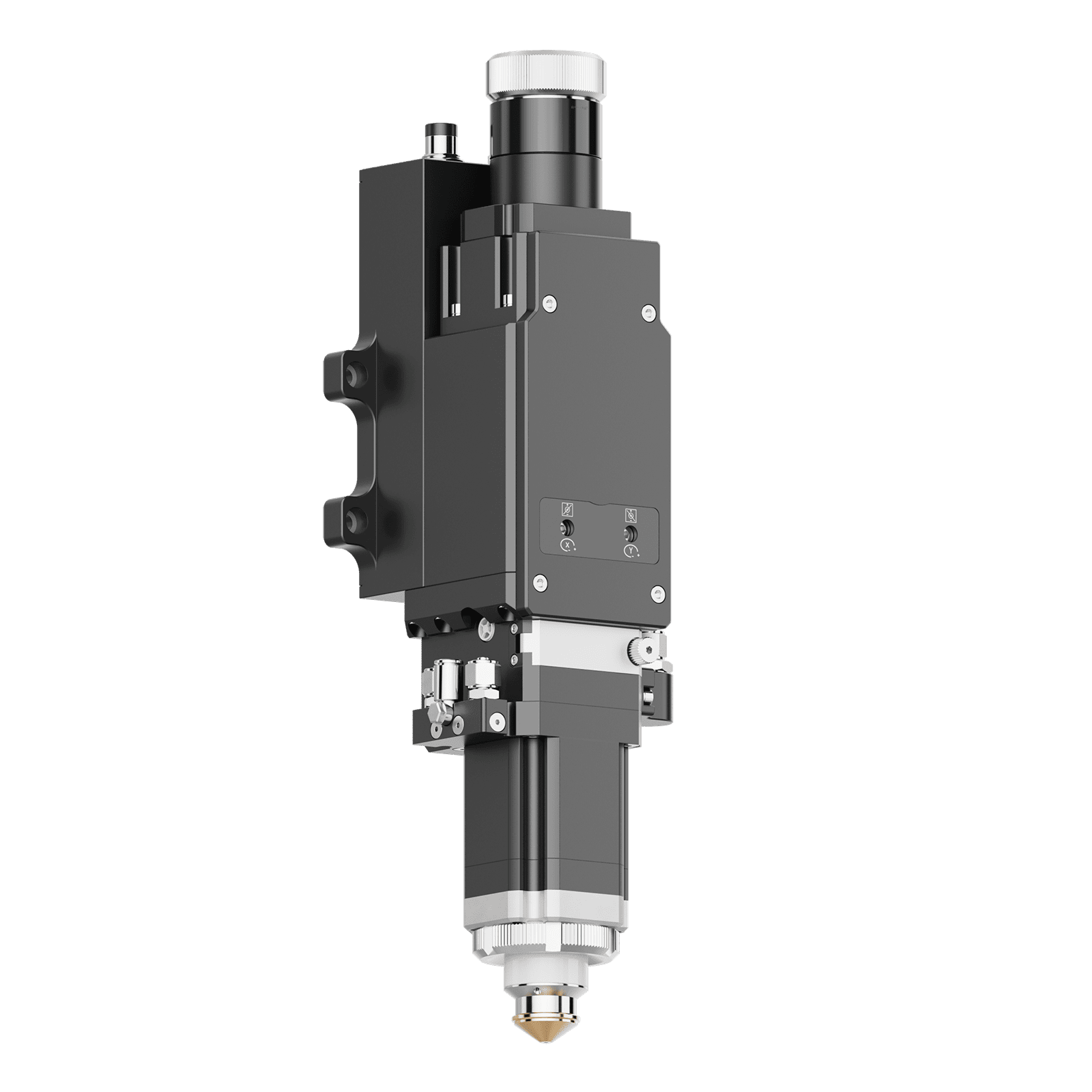

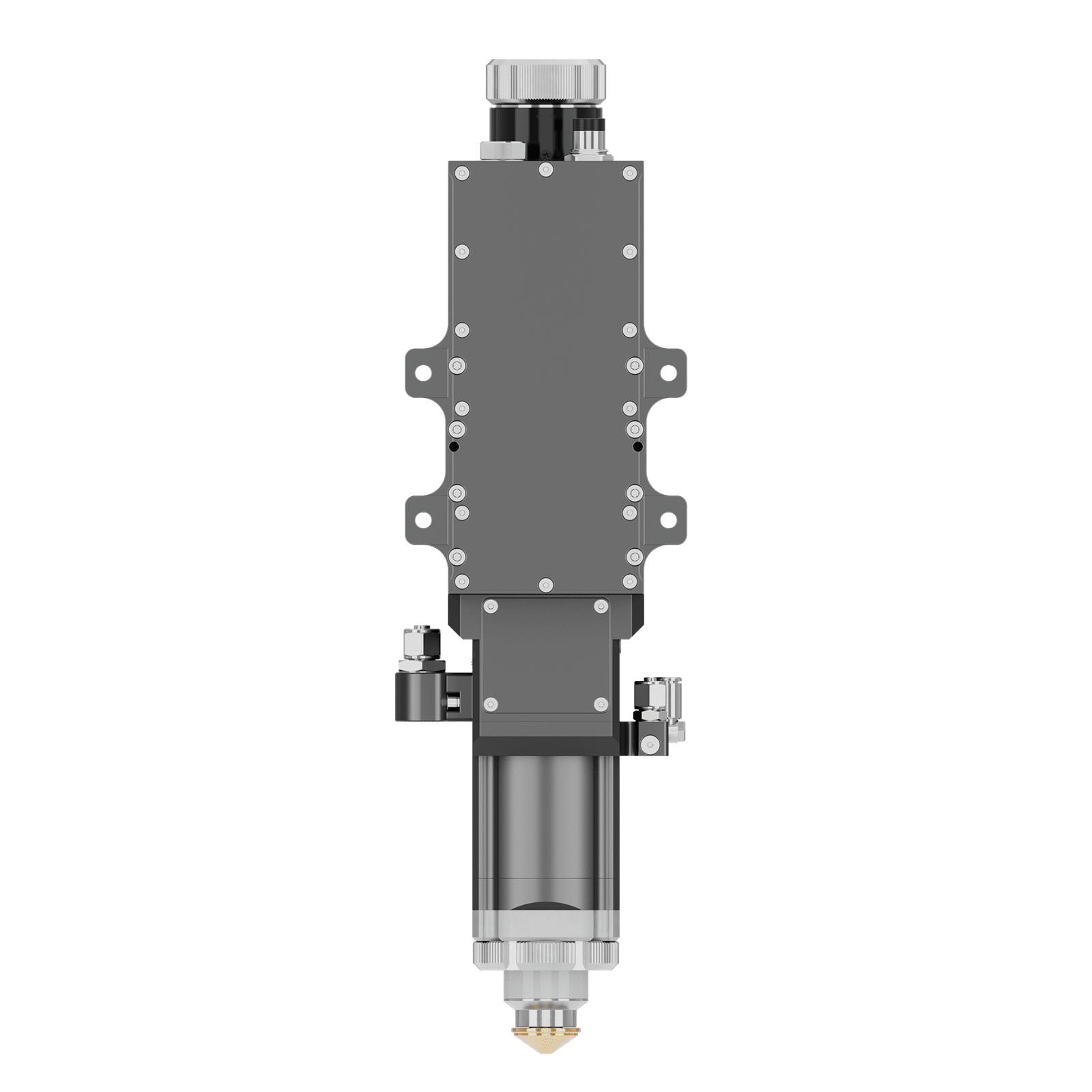

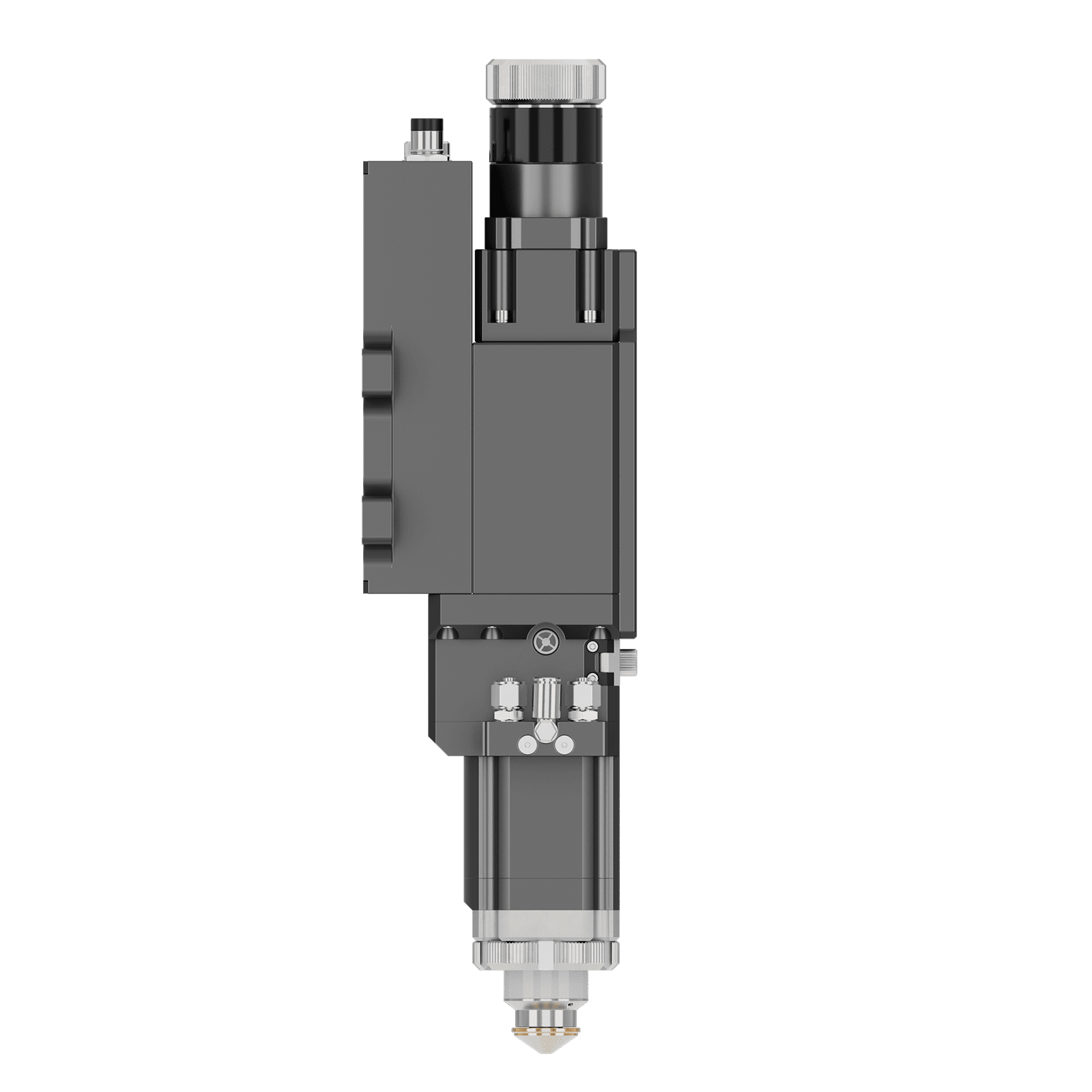

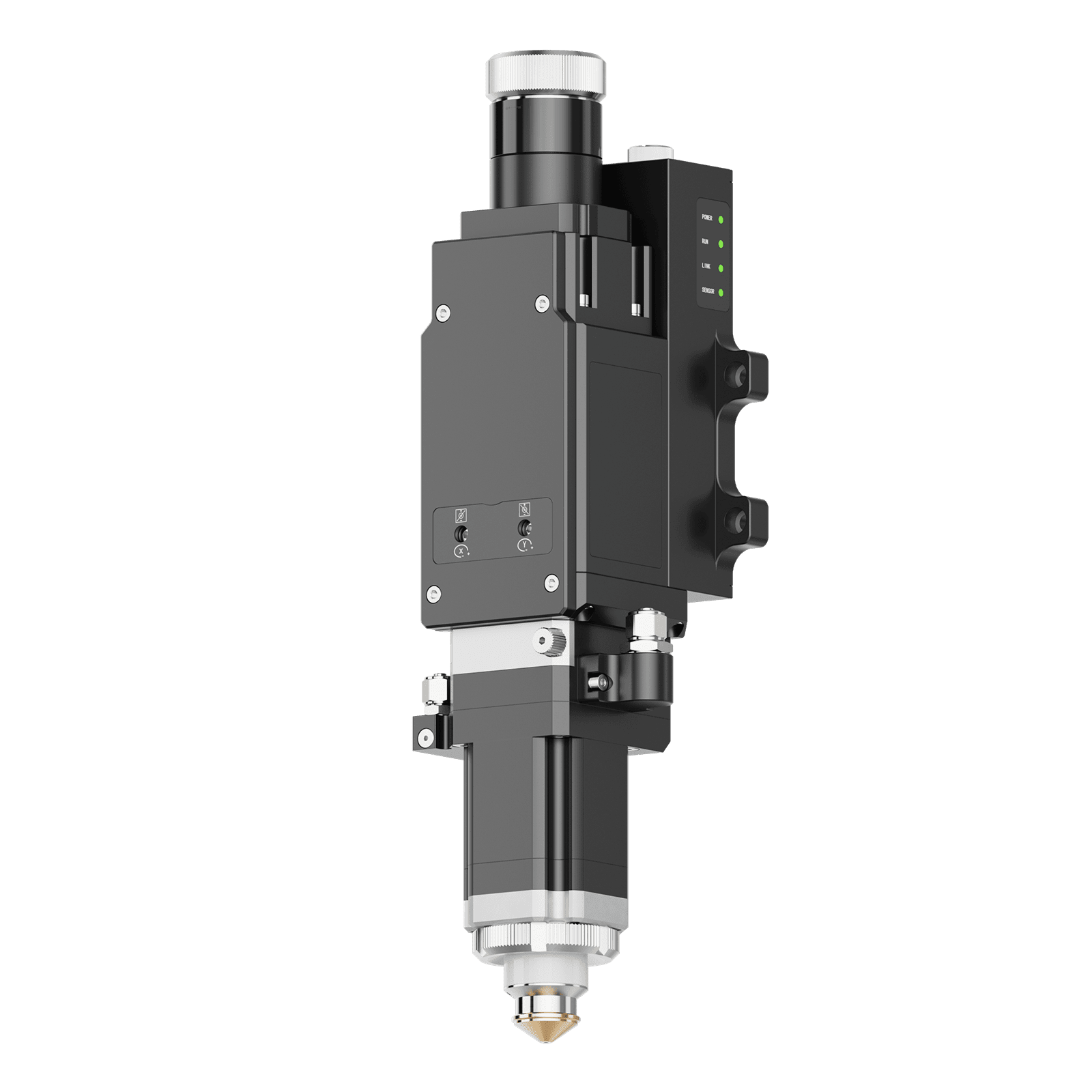

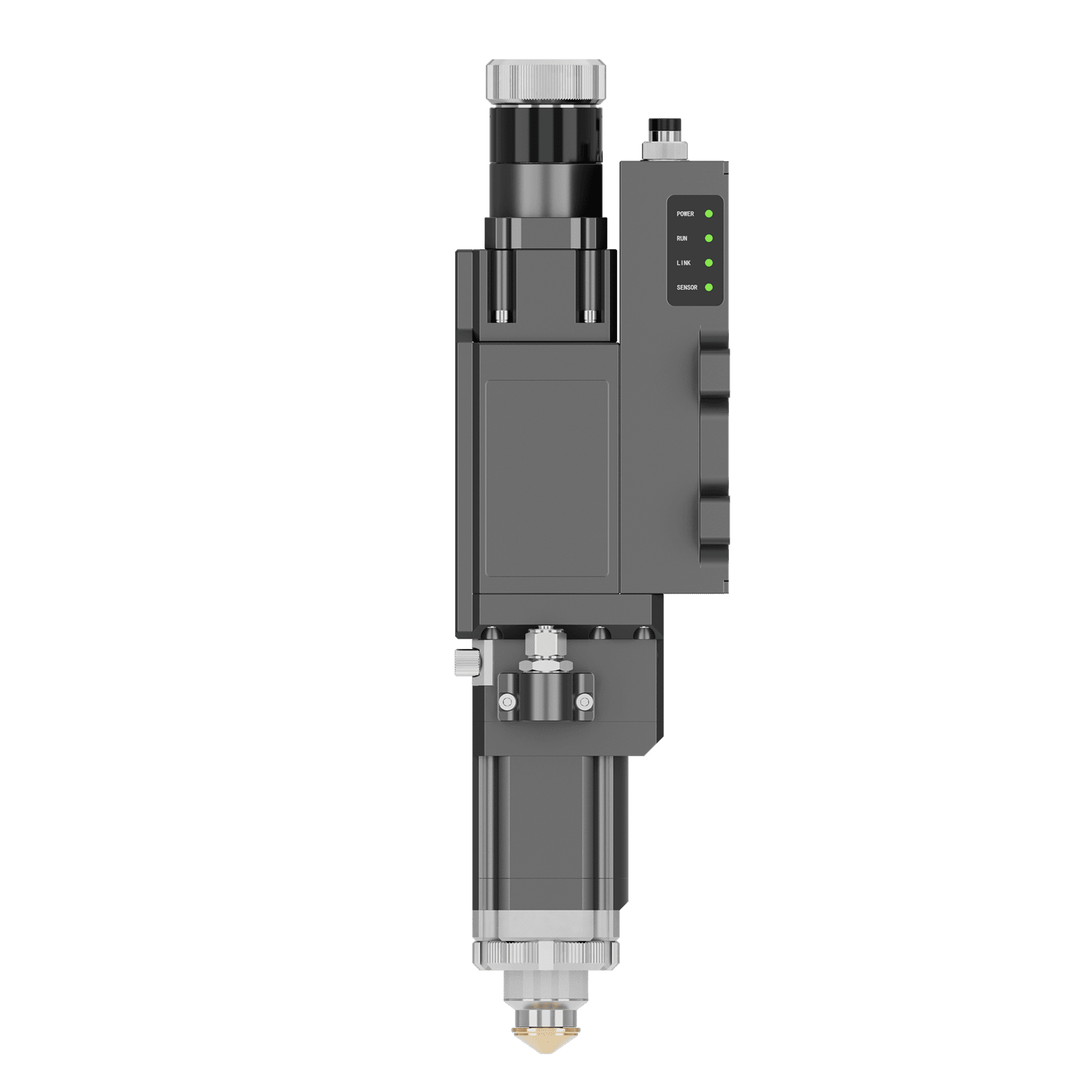

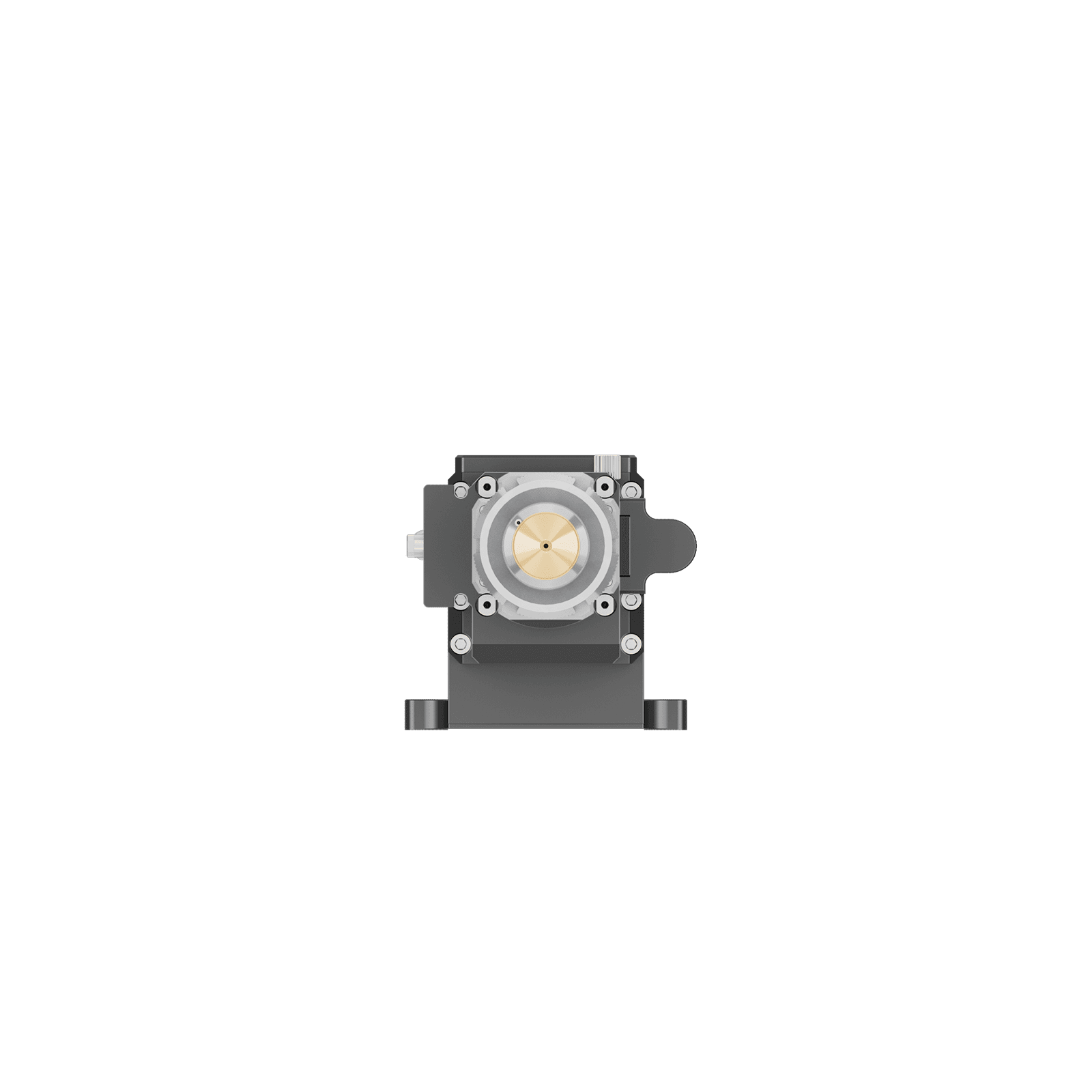

The Bochu BLT 310 Laser Cutting Head is a cost-effective, lightweight, and impact-resistant solution featuring advanced intelligent sensors for real-time monitoring, rapid diagnosis, and instant warnings, ideal for medium and low power laser cutting applications.
Key Features of BLT 310 Laser Cutting Heads
The cutting head water circuit is protected with an anti-corrosion coating to prevent corrosion over prolonged use, which can lead to blockages and reduced cooling effectiveness.
One-click pressure calibration ensures continuity of quality. Gas pressure detection before turning on laser helps to prevent windows breakdown caused by insufficient pressure.

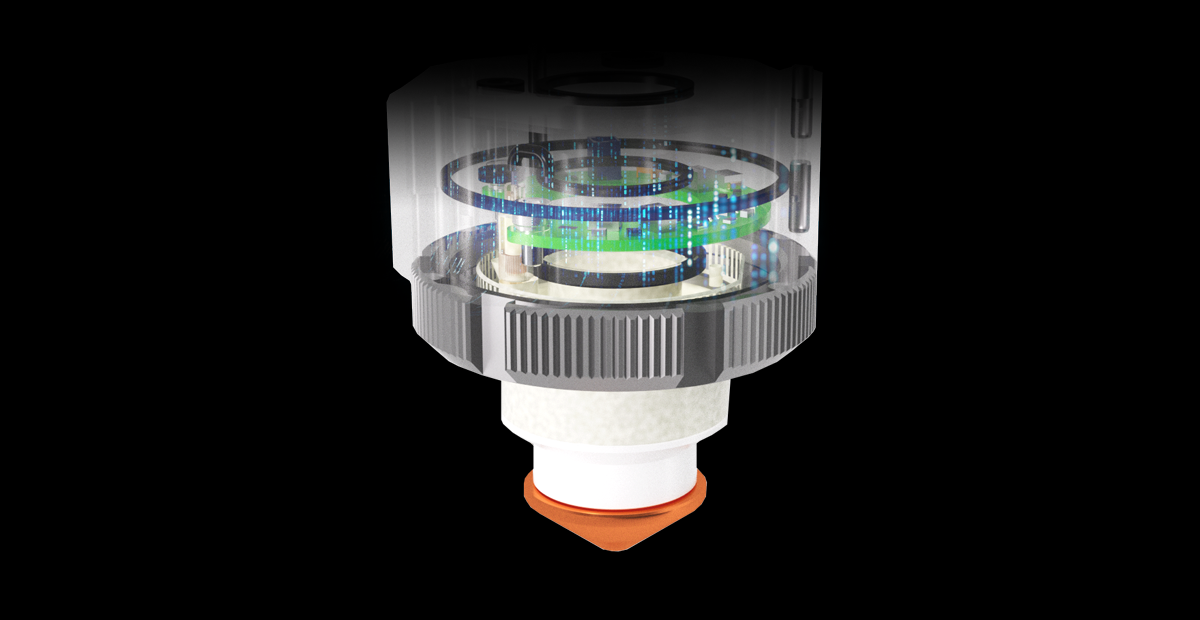

Integrated capacitance amplifier sensor makes a more precise and stable following.

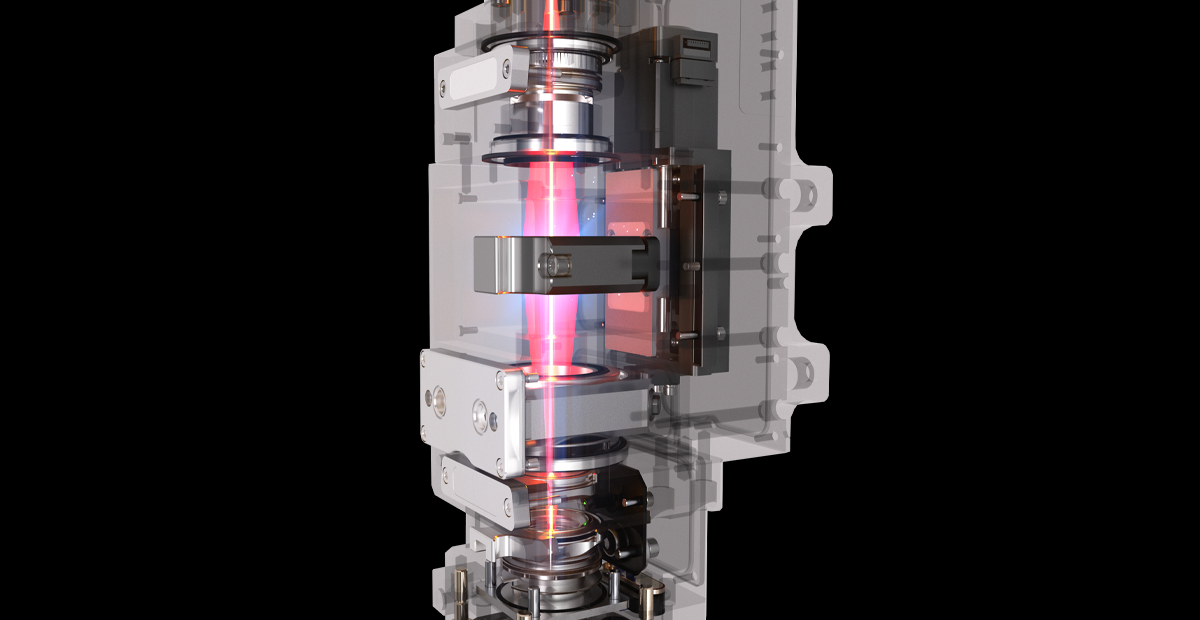

Focal position vertically adjusted by collimating lens, realizing higher efficiency.

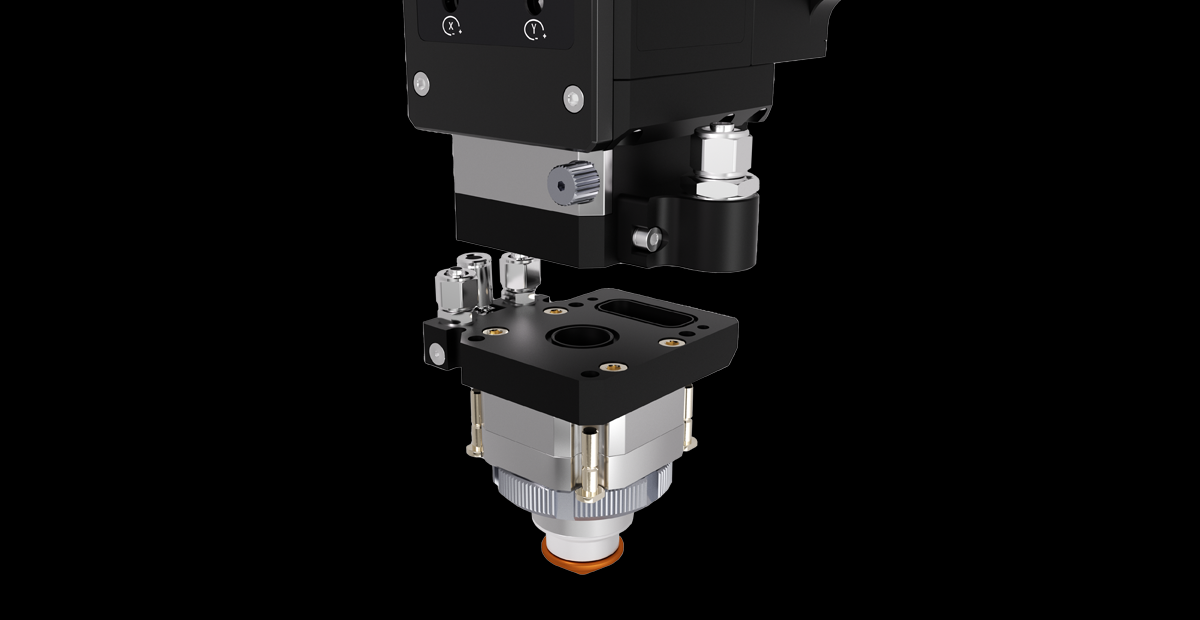

Protective Screws keep cutting head from damage. No time wasting on Depot Repair.

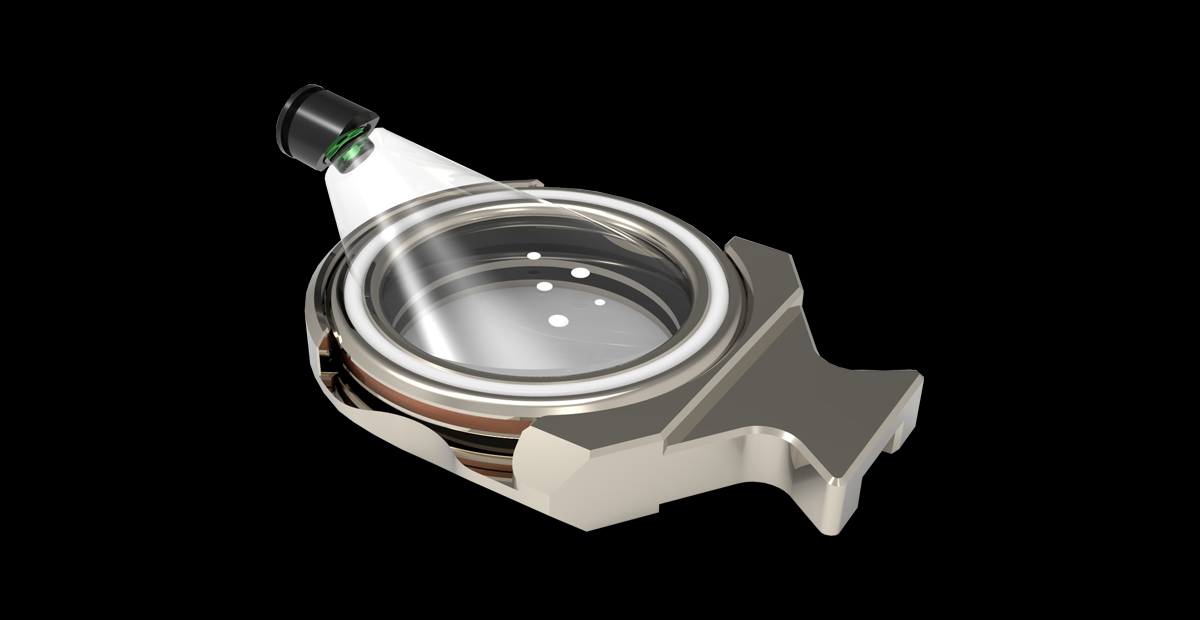

Protective Window Temperature Sensor: Real time temperature monitoring to limit risk of protective window shattering, enhance processing stability.
Specifications
| Model | Bochu BLT 310 |
| Power Range | ≤4 kW |
| Fiber Interface | QBH, EOC |
| Focal Distance | 150/200 mm |
| Laser Wavelength | 1030~1090 nm |
| Weight | 4.5 kg |
Video & Downloads
Spare Parts & Consumables
Image | Name | SKU | Description |
|---|---|---|---|
 | DP.M.Q0209AA | The 2nd-Lower Protective Window Cartridge for the Bochu BLT 3 Series and… | |
 | DP.M.Q0287AA | The Capacitance Sensor Module for the Bochu BLT 3 Series (310T-200) Tube… | |
| DP.M.Q0211AA | The Capacitance Sensor Module for the Bochu BLT 3 Series Laser Cutting… | |
| DP.M.Q0288AA | The Capacitance Sensor Module for the Bochu BLT 3 Series (310T-250) Tube… | |
| DP.M.Q0213AA | The Capacitance Sensor Module for the Bochu BLT 3 Series (310-200) Laser… | |
 | DY.C.A0004AA | The Ceramic Body for Bochu BLT 3 and 4 Series Laser Cutting… | |
| Y.Z.C0034 | The Ceramic Body for the Bochu BLT 3, 4 and 6 Series… | |
 | DP.P.T0005AA | The Ceramic Locking Ring suitable for Bochu BLT 3 Series and 4… | |
| P.S.J0020 | The Ceramic Locking Ring suitable for Bochu BLT 3, 4 and 6… | |
 | DP.M.Q0421AA | The Collimating Cartridge Unit for the Bochu BLT 3 Series Laser Cutting… | |
 | DP.M.Q0277AA | The Focusing Cartridge Unit for the Bochu BLT 3 Series (310T-250) Laser… | |
| DP.M.Q0214AA | The Focusing Cartridge Unit for the Bochu BLT 3 Series Laser Cutting… | |
| DP.M.Q0419AA | The Focusing Cartridge Unit for the Bochu BLT 3 Series (310-150G) Laser… | |
| DP.M.Q0215AA | The Focusing Cartridge Unit for the Bochu BLT 3 Series (310-200, 310T-200)… | |
 | DP.M.Q0293AA | The Lower Protective Window Cartridge for the Bochu BLT 3 Series (310T-250)… | |
| DP.M.Q0208AA | The Lower Protective Window Cartridge for the Bochu BLT 3 Series Laser… | |
 | DP.M.Q0206AA | The Lower Protective Window Cover for the Bochu BLT 3 Series Laser… | |
 | The Plane Bevel Nozzle for Bochu BLT Laser Cutting Head is a… | ||
| The Plane Nozzle (M11x0.75) for Bochu BLT Laser Cutting Heads is a… | ||
 | DP.M.Q0129AA | The Protective Screws for Bochu BLT Laser Cutting Heads function as a… |
